Highlights:
  • Form Factor: 4U Rackmountable / Tower
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 8x 3.5" Hot-Swap
  • Up to 4x Double-Wide cards
Contact sales for pricing

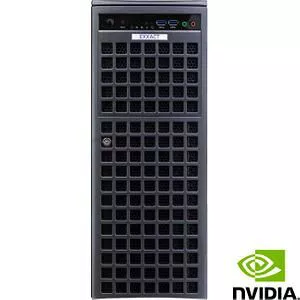

The TensorEX TWS-773645-NQR is a 4U rack mountable tower supporting 2x Intel Xeon processor Scalable family, a maximum of 2 TB DDR4 memory, and up to 4x NVIDIA Quadro RTX GPUs.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
RTX A600048 GB GDDR676810752336TBDTBD300Specs
A4048 GB GDDR669610752336TBDTBD300Specs
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI Links
3
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
2 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
SATA3
  • Via C621 chipset
  • RAID 0, 1, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500 BMC
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 6x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x4 (in x8 slot)
Drive Bays
Fixed
8x 3.5" drive bays
Peripheral
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
9
Number of USB 3.0 Ports
5 (2x rear, 2x header, 1x Type A)
Number of USB 2.0 Ports
4 (2x rear, 2x header)
Number of SATA Interfaces
  • 10x SATA3 Ports
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
2x COM ports (1x rear, 1x header)
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
18.2"
Width
7.0"
Depth
26.5"
