MPN: TTT-120990096

Exxact TensorEX 1U Storage Server - 1x AMD EPYC 9004-Series processor - TTT-120990096

Highlights

About

Specifications

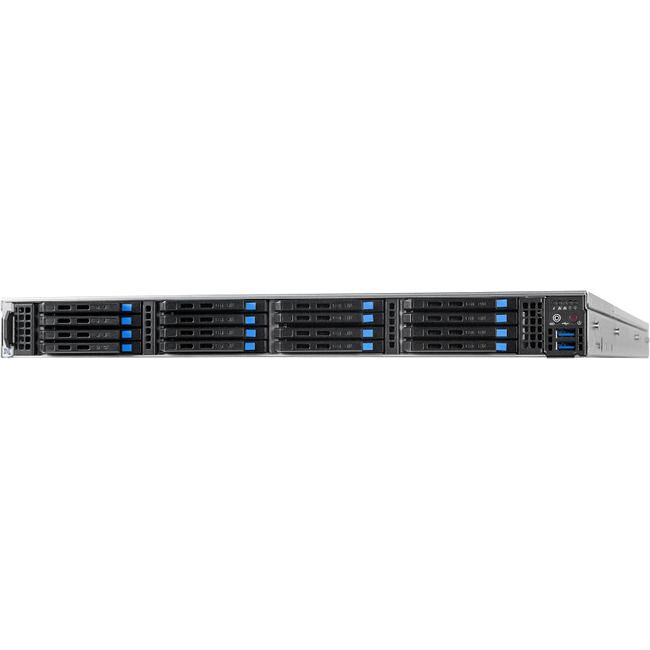

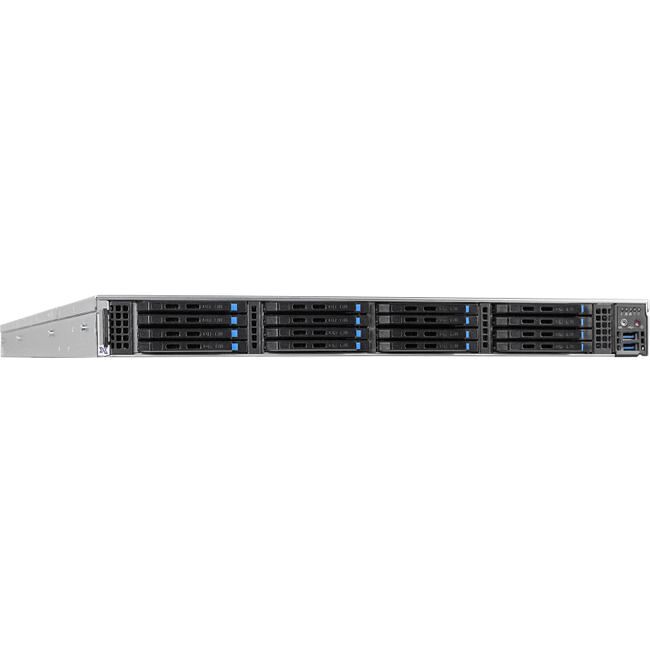

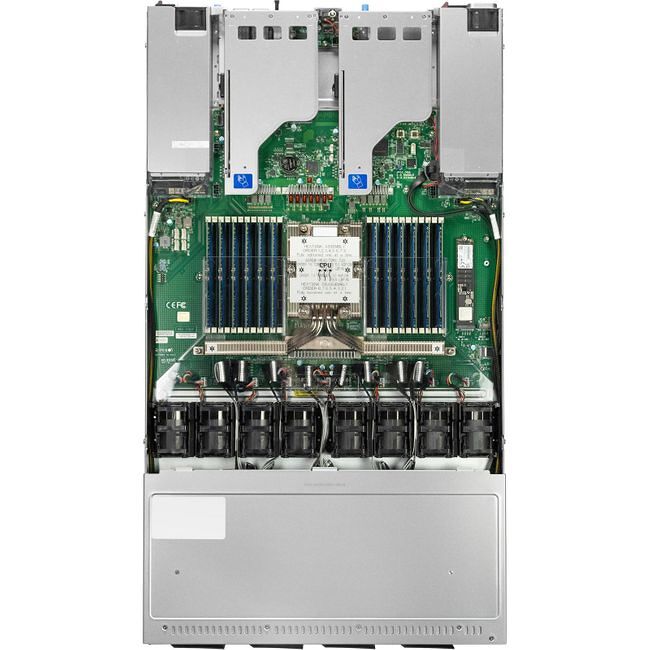

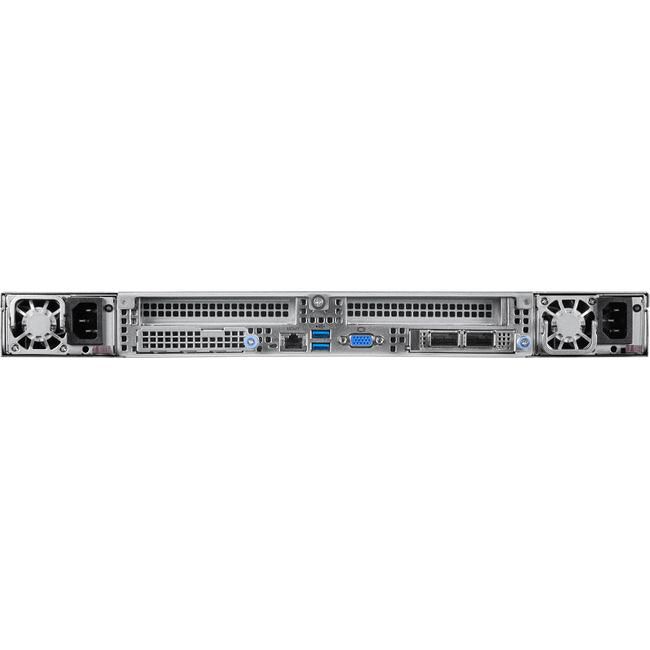

The TensorEX TTT-120990096 is a 1U rack mountable storage server supporting 1x AMD EPYC 9004 Series processors, 24x DDR5 memory slots, and 2x PCI-E 5.0 x16 slots.

Specifications

Processor & Chipset

Number of Processors Supported

Processor Socket

Socket SP5 LGA-6096

Processor Type

EPYC

Processor Supported

9004-Series

Thermal Design Power (TDP)

300 W

Memory

Memory Technology

DDR5 SDRAM

Memory Standard

DDR5-4800/PC5-38400

Number of Total Memory Slots

Controllers

NVMe

Via CPU

Display & Graphics

Graphics Controller Manufacturer

ASPEED

Graphics Controller Model

AST2600

Network & Communication

Ethernet Technology

Via AIOM slots

I/O Expansions

PCI Express

2x PCI-E 5.0 x16 slots (Full-Height / Full-Length)
2x PCI-E 5.0 x16 AIOM slots
2x PCI-E 3.0 M.2 slots (Up to 22110)

Drive Bays

Hot-swap

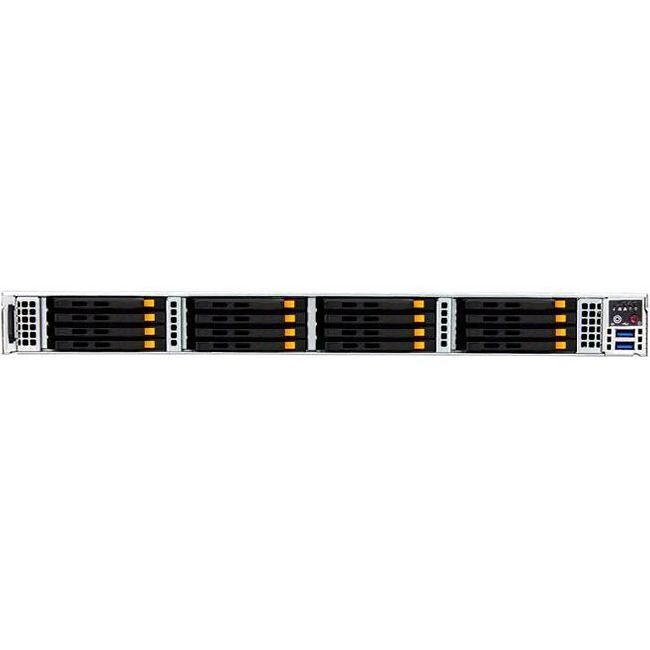

16x E3.S NVMe Hot-swap drive bays

Interfaces/Ports

Number of USB 3.0 Ports

4 (2x front, 2x rear)

NVMe Interfaces

16x U.2
2x M.2

LAN

1x Management LAN port

Onboard Video

1x VGA Connector

Power Description

Number of Power Supplies

Redundant Power Supplies

Yes

Maximum Power Supply Wattage

1600 W

Certification

80 Plus Titanium

Physical Characteristics

Color

Black

Form Factor

Rack-mountable

Rack Height

Height

1.7"

Width

17.2"

Depth

30.4"
