Highlights:
  • Rack Height: 4U
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 6x 2.5" SATA/NVMe Hot-Swap
  • 8x NVIDIA A100 SXM4 GPUs
Contact sales for pricing

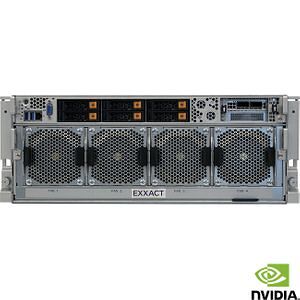

The TensorEX TS4-168747704-NTS is a 4U rack mountable server supporting 2x Intel Xeon Scalable family processors, a maximum of 8 TB DDR4 memory, and 8x NVIDIA A100 Ampere GPUs (SXM4), with up to 600 GB/s NVLINK interconnect.

NVIDIA SXM4 GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
A100 40 GB SXM440 GB HBM2e1555691243219.59.7400--
NVIDIA Tesla GPU Servers

Processor & Chipset
Number of Processors Supported
2
Processor Socket
N/A
Processor Type
Xeon
Processor Supported
  • N/A
Thermal Design Power (TDP)
N/A
Number of UPI
N/A
GPU
8x NVIDIA A100 Ampere SXM4
Chipset Manufacturer
Intel
Chipset Model
N/A
Memory
Maximum Memory
8 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
32
Controllers
SATA3
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2600 BMC
Network & Communication
Ethernet Technology
  • Via AIOM network card
I/O Expansions
PCI Express
  • 8x PCI-E 4.0 x16 slots (Low-Profile, From PCI-E)
  • 2x PCI-E 4.0 x16 slots (Low-profile, From CPU)
  • 2x PCI-E M.2 slots
Drive Bays
Hot-swap
  • 6x 2.5 hot-swap drive bays
  • Supports NVMe drives
Interfaces/Ports
Total Number of USB Ports
N/A
Number of SATA Interfaces
6
LAN
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
N/A
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.6"
Depth
N/A
