Highlights:
  • Rack Height: 2U
  • Number of nodes: 4
  • Processor Supported (Per Node): 2x AMD EPYC 7001/7002 Series
  • Drive Bays: 4x 3.5" Hot-Swap
Contact sales for pricing

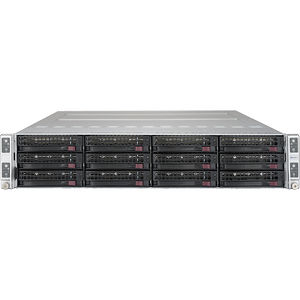

The Tensor TS2-288590-AES is a 2U 4x node rack mountable server supporting 2x AMD EPYC 7001/7002 Series processors and a maximum of 1 TB DDR4 memory per node.

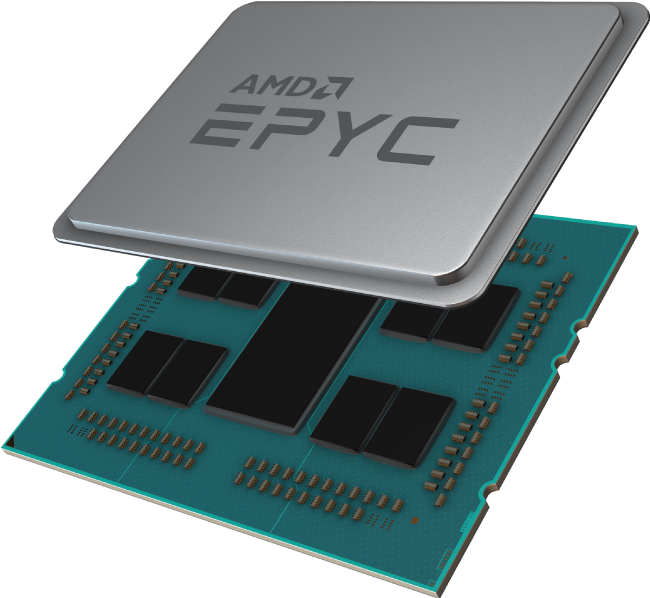

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.


  • Built on 7nm advanced process technology – the best the industry has to offer, allowing for denser compute capabilities with lower power consumption.
  • The world’s first 64 core data center CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture.
  • The world’s first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0.
  • Embedded security protection to help defend your CPU, applications, and data.
  • Up to 2X Performance Per Socket & IO Bandwidth vs AMD EPYC Naples.
  • Up to 4X Floating Point Per Socket vs AMD EPYC Naples.
EPYC 7002

Discover the new leader in data center performance.


See the new standard with AMD EPYC 7002 servers and workstations.


Learn More
EPYC Bandwidth Chart

PCIe Gen 4.0 Ready

AMD EPYC Rome is the world’s first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. Exxact’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.

* The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
EPYC Speed Chart

Higher Memory Speed

AMD EPYC’s Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel)

See the new processor standard for innovation.


Raise expectations for your data center.


Learn More
Processor & Chipset (per node)
Number of Processors Supported
2
Processor Socket
SP3
Processor Type
EPYC
Processor Supported
  • 7001-Series
  • 7002-Series
Memory (per node)
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
16
Controllers
SATA3
  • Via SXB1/2 slots
Display & Graphics (per node)
Graphics Controller Manufacturer
N/A
Graphics Controller Model
N/A
Network & Communication (per node)
Ethernet Technology
  • Via optional SIOM modules
I/O Expansions (per node)
PCI Express
  • 2x PCI-E 3.0 x16 (low-profile) slots
  • 1x PCI-E 3.0 x8 (for SIOM module) slot
Drive Bays (per node)
Hot-swap
3x 3.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
10
Optional SIOM add-on-modules
  • 2x 25G (SFP28)
  • 1x FDR IB (QSFP), 1x 1GbE (RJ45)
  • 2x FDR IB (QSFP), 1x 1GbE (RJ45)
  • 4x 10G (RJ45)
  • 2x 10G (RJ45)
  • 2x 10G (SFP+)
  • 4x 10G (SFP+)
  • 4x 1GbE (RJ45)
  • 2x 1GbE (RJ45)
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
N/A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43"
Width
17.48"
Depth
N/A
