Highlights:
- Rack Height: 1U
- Processor: 1x Intel LGA1151 Socket processor
- Drive Bays: 4x 3.5" Hot-Swap | 2x 2.5" Internal
- Supports 1x Double-Wide card

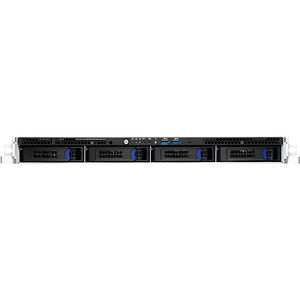

The TensorEX TS1-197535292-NTS is a 1U rack mountable server supporting 1x Intel Xeon E-2100, Core i3, Pentium, or Celeron processor, a maximum of 64 GB DDR4 memory, and 1x Double-Wide card.
NVIDIA Tesla GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | A100 40 GB PCI-E 4.0 | 40 GB HBM2e | 1555 | 6912 | 432 | 19.5 | 9.7 | 400 | Specs |
 | V100S 32 GB PCI-E 3.0 | 32 GB HBM2 | 1134 | 5120 | 640 | 16.4 | 8.2 | 250 | Specs |
| V100 32 GB PCI-E 3.0 | 32 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
| V100 16 GB PCI-E 3.0 | 16 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
 | P100 16 GB PCI-E 3.0 | 16 GB HBM2 | 732 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
| P100 12 GB PCI-E 3.0 | 12 GB HBM2 | 549 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
 | T4 PCI-E 3.0 | 16 GB GDDR6 | 320 | 2560 | 320 | 8.1 | 0.24 | 75 | Specs |
 | P4 PCI-E 3.0 | 8 GB GDDR5 | 192 | 2560 | - | 5.5 | 0.17 | 75 | Specs |
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 1151
Processor Type
- Xeon
- Core
- Pentium
- Celeron
Processor Supported
- E-2100
- Core i3
- Pentium
- Celeron
Thermal Design Power (TDP)
Up to 95W
Chipset Manufacturer
Intel
Chipset Model
C242
Memory
Maximum Memory
64 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
4
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 1x PCI-E 3.0 x16 slots (Double-Wide card support)
- 1x PCI-E 3.0 x4 slot (Half-height / Half-Length)
Drive Bays
Hot-swap
4x 3.5" Hot-swap drive bays
Internal
2x 2.5" Hot-swap drive bays
Interfaces/Ports
Number of USB 3.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
4
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port/Header
1x DB-9 COM Port
DOM
2x SATA-DOM connectors
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
650 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.72"
Width
17.2"
Depth
25.4"
