EMX-ETL650AWT-00
MPN: ETL650AWT

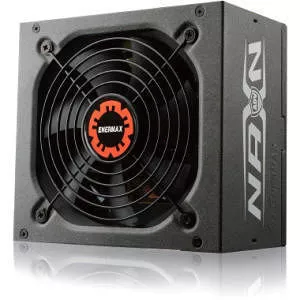

Enermax ETL650AWT NAXN ADV ATX12V & EPS12V 650W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
ETL650AWT
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
NAXN ADV
Product Model
ETL650AWT
Product Name
NAXN ADV ETL650AWT ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Under Voltage
  • Over Power
  • Short Circuit
  • Surge
  • Inrush Current
    • Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Input Current
  • 10 A @ 110V
  • 5 A @ 220V
    • Output Current
  • 20 A
  • 50 A
  • 300 mA
  • 2.50 A
    • Output Power
    650 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 4 x 6+2pin PCI-E
  • 7 x Serial ATA
  • 3 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
    • Physical Characteristics
    Color Family
    Black
    Product Color
    Black
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Length
    3"
    Weight (Approximate)
    5 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
    80 Plus Bronze
    Energy Efficiency Compliance
    Energy-related Products Directive Lot 6 (ErP Lot 6)
    Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
    • Warranty
    Limited Warranty
    3 Year
