EMX-ERX630AWT-00
MPN: ERX630AWT

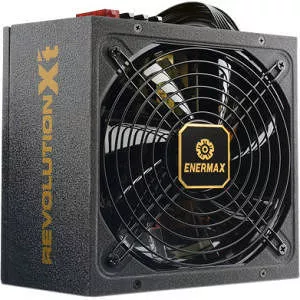

Enermax ERX630AWT REVOLUTION X't 630W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
ERX630AWT
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
REVOLUTION X't
Product Model
ERX630AWT
Product Name
REVOLUTION X't 630W ERX630AWT
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
93%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Voltage
  • Over Power
  • Short Circuit
  • Surge
  • Inrush Current
  • Over Temperature
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
    240 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Output Voltage Detail
  • 3.3 V DC @ 25 A
  • 5 V DC @ 25 A
  • 12 V DC @ 51 A
  • -12 V DC @ 800 mA
  • 5 V DC @ 3 A
    • Input Current
  • 10 A @ 110V
  • 5 A @ 220V
    • Output Current
  • 25 A
  • 51 A
  • 800 mA
  • 3 A
    • Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x ATX
  • 1 x ATX12V
  • 4
  • 8
  • 4 x LP4
  • 1 x SP4
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    5.5"
    Weight (Approximate)
    5.89 lb
