EMX-EPM1000EWT-00
MPN: EPM1000EWT

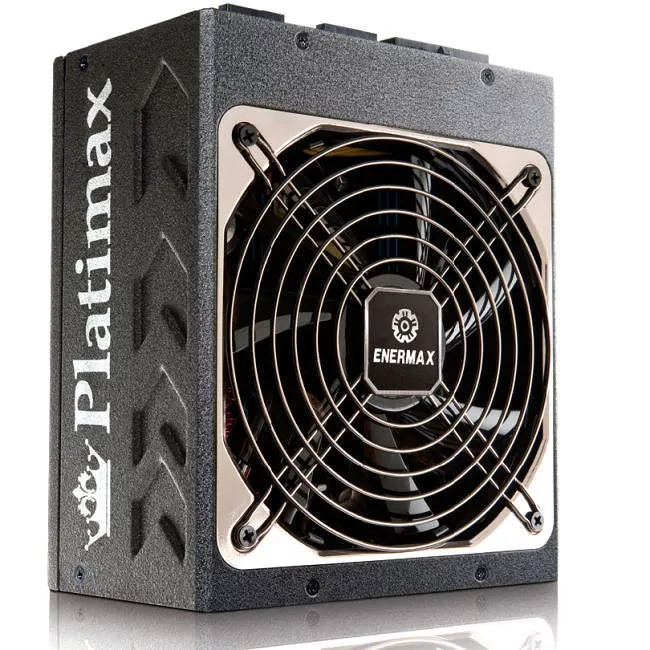

Enermax EPM1000EWT Platimax ATX12V & EPS12V 1000 W Fully Modular Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
EPM1000EWT
Manufacturer Website Address
http://www.enermax.com
Brand Name
Enermax
Product Line
Platimax
Product Model
EPM1000EWT
Product Name
Platimax EPM1000EWT ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
94%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Output Under Voltage
  • Over Power
  • Over Temperature
  • Short Circuit
  • Surge
  • Inrush Current
    • Modular
    Yes
    ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    1
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC - 264 V AC
    Output Voltage
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
    • Input Current
  • 10.5 A @ 110V
  • 4.5 A @ 220V
    • Output Current
  • 24 A
  • 83 A
  • 500 mA
  • 3 A
  • 20 A
    • Output Power
    1000 W
    Interfaces/Ports
    Receptacles
  • 1 x 24-pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 1 x 8-pin EPS12V Motherboard
  • 6 x 6+2pin PCI-E
  • 12 x Serial ATA
  • 8 x 4-pin LP4 Peripheral Device
  • 1 x 4-pin SP4 Floppy Drive
  • 1 x 24-pin Main Connector
  • 1 x 4+4pin CPU
  • 1 x 8-pin CPU
    • Physical Characteristics
    Product Color
    Gray
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    6.9"
    Length
    13"
    Weight (Approximate)
    1.50 lb
    Miscellaneous
    Compatibility
    • AMD Opteron Processor

    Intel Processors:

    • Xeon
    • Core Extreme i7
    • Core Extreme i5
    • Core Extreme i3
    Country of Origin
    China
    Environmentally Friendly
    Yes
    Energy Efficiency Certification
    80 Plus Platinum
    Energy Efficiency Compliance
    Energy-related Products Directive Lot 6 (ErP Lot 6)
    Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
    • Warranty
    Limited Warranty
    5 Year

    Specifications
