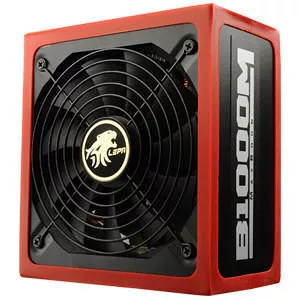

EMX-B1000-MB-00
MPN: B1000-MB

Enermax B1000-MB MaxBron ATX12V & EPS12V 1000W Power Supply

Highlights
General Information
Manufacturer
Enermax Technology Corporation
Manufacturer Part Number
B1000-MB
Manufacturer Website Address
http://www.enermax.com
Brand Name
LEPA
Product Line
MaxBron
Product Name
MaxBron B1000-MB ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Power
  • Over Voltage
  • Short Circuit
    • Modular
    Yes
    Power Description
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
    • Input Voltage Range
    100 V AC to 240 V AC
    Number of +12V Rails
    1
    Output Voltage
  • 3.3 V DC @ 24 A
  • 5 V DC @ 24 A
  • 12 V DC @ 83 A
  • -12 V DC @ 300 mA
  • 5 V DC @ 2.50 A
    • Input Current
  • 15 A @ 110V
  • 7.50 A @ 220V
    • Output Power
    1000 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 12 x Serial ATA
  • 1 x 4+4pin ATX12V Motherboard
  • 1 x 4-pin SP4 Floppy Drive
  • 6 x 6+2pin PCI-E
  • 1 x 8-pin EPS12V Motherboard
  • 6 x 4-pin LP4 Peripheral Device
    • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    6.5"
    Miscellaneous
    Certifications & Standards
    • PCT
    • CE
    • CCC
    • FCC
    • C-Tick
    Environmentally Friendly
    Yes
    Environmental Certification
  • 80 Plus Bronze
  • RoHS
  • China RoHS
  • WEEE
  • ErP Lot 6

    • Specifications
