Highlights:
  • Product Type: POS Terminal
  • Network (RJ-45): Yes
  • Ethernet Technology: Gigabit Ethernet
  • Standard Memory: 4 GB
Contact sales for pricing

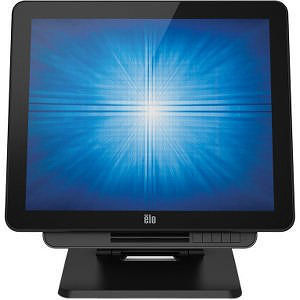

X-Series POS Touch Computers

Our latest X-Series all-in-one touchscreen computer is one of the most powerful point-of-sale systems in its class. Choose a processor from the Intel® Celeron™ Apollo Lake N3450 processor to the high-performance Intel® Core™ i7 Skylake processor with Intel® vPro™ Technology - the most powerful processor we've ever put in an all-in-one computer to date. The highly versatile X-Series platform provides maximum configurability beginning with your choice of 15-, 17- and 20-inch touchscreen displays. Ideal for applications in any retail, restaurant or hospitality environment, the X-Series is both sleek and compact and offers with a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options making the X-Series a perfect choice for your POS needs.

What's New With X-Series

Processor

New Apollo Lake Platform for X2 Models and Skylake Platform for X3/X5/X7 Models

Wi-Fi

Wi-Fi module a/b/g/n/ac that supports dual-band 2.4 and 5GHz

I/O Connections

Integrated cash drawer port, display port output and 24V Powered USB on all models

Powerful & Interactive for your Business

Modularity is at the core of the X-Series. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of X-Series touch computers can support the installation needs with ease while maintaining the power and durability to perform in demanding environments.

Made for Point of Sale

Customer facing displays are becoming a critical component to the POS terminal so it's time to start enhancing customer engagement at checkout. Whether you use flip-to-sign or two displays on a fixed POS terminal, both allow you to display itemized order information, tipping, digital signature and loyalty programs to your customers.

Endless Configurability

Configurability is at the core of the X-Series. Choose the size, operating system, processor, touch technology, storage, memory and mount to tailor the solution to meet your demands.

Accessorize

Every X-Series system is built with transactions in mind, and the wide assortment of peripheral options reflect just that. Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint reader to the bezel of the X-Series via a universal snap-in connector.

Get Connected

Connectivity is easy with Elo's X-Series - connect wirelessly with Wi-Fi 802.11 or Bluetooth 4.0 or through a wired connection with Ethernet.

Service Made Easy

The modular design of the X-series allows self-maintained customers to easily replace both the computer and display modules. The unique, modular chassis provides easy access to Field Replaceable Units such as Solid-State Drives, Hard Disk Drives and SODIMM memory modules for quick, tool-less servicing.

Built-to-Last

Rigorously tested and backed by a three-year warranty, the X-Series touchscreen computer delivers superior quality and reliability. And, with the splash-proof housing and rugged retail-hardened design, the touch computer can easily withstand the adverse conditions associated with most commercial environments.

General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E548822
Manufacturer Website Address
http://www.elotouch.com
Brand Name
Elo
Product Series
X
Product Model
X5
Product Name
X-Series 17-inch AiO Touchscreen Computer (Rev B)
Product Type
POS Terminal
Processor & Chipset
Processor Manufacturer
Intel
Processor Type
Core i5
Processor Core
Quad-core (4 Core)
Processor Speed
2.13 GHz
Memory
Standard Memory
4 GB
Memory Technology
DDR4 SDRAM
Storage
Solid State Drive Capacity
128 GB
Solid State Drive Interface
SATA
Display & Graphics
Screen Size
17"
Display Screen Type
LED
Touchscreen
Yes
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics 530
Network & Communication
Wireless LAN
Yes
Ethernet Technology
Gigabit Ethernet
Interfaces/Ports
USB
Yes
Powered USB
Yes
Network (RJ-45)
Yes
Cash Drawer Port
Yes
Serial Port
Yes
Software
Operating System
Windows 7 Professional x64
Physical Characteristics
Color
Black
Height
15.6"
Width
14.4"
Depth
2.7"
Weight (Approximate)
10.26 lb
Miscellaneous
Package Contents
  • X-Series 17-inch AiO Touchscreen Computer (Rev B)
  • Power cable
  • Power Adapter
  • Adapter Cable RJ-45 to DB-9
  • Cable cover locking screw
  • Quick Installation Guide (QIG)
Environmentally Friendly
Yes
Environmental Certification
TÜV
Warranty
Limited Warranty
3 Year
