Highlights:
  • Maximum Resolution: 1024 x 768
  • Brightness: 250 Nit
  • Contrast Ratio: 700:1
  • Product Type: Open-frame LCD Touchscreen Monitor
Contact sales for pricing

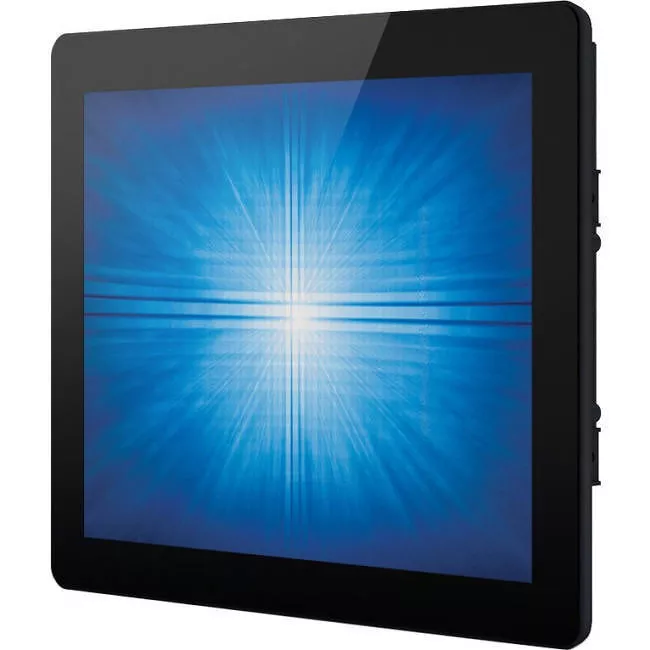

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E326738
Manufacturer Website Address
http://www.elotouch.com
Brand Name
Elo
Product Model
1590L
Product Name
1590L 15" Open Frame Touchscreen (Rev B)
Product Type
Open-frame LCD Touchscreen Monitor
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
16 ms
Aspect Ratio
4:3
Mount Type
  • Rack-mountable
  • Front Mount
  • Backlight Technology
    LED
    Video
    Maximum Resolution
    1024 x 768
    Color Supported
    16.2 Million Colors
    Contrast Ratio
    700:1
    Brightness
    250 Nit
    Touchscreen Information
    Touchscreen Type
    IntelliTouch Surface Wave
    Interfaces/Ports
    HDMI
    Yes
    USB
    Yes
    VGA
    Yes
    DisplayPort
    Yes
    Power Description
    Operating Power Consumption
    12.50 W
    Physical Characteristics
    VESA Mount Compatible
    Yes
    Color
    Black
    Height
    10.4"
    Width
    13.2"
    Depth
    1.7"
    Weight (Approximate)
    6.40 lb
    Miscellaneous
    Package Contents
    • 1590L 15" Open Frame Touchscreen (Rev B)
    • HDMI cable
    • VGA Cable
    • RJ45 OSD Remote
    • Touch USB Cable
    • User Manual CD
    • Quick Install Guide
    • "L" (Side Mount) Brackets and w/Screws
    • EEI Label
    • Japan Class-B TM info sheet
    Environmentally Friendly
    Yes
    Environmental Certification
  • TÜV
  • RoHS
  • China RoHS
  • WEEE
  • Warranty
    Limited Warranty
    3 Year
