ABOUT
The Elo Touch Solutions 1515L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into a integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit and includes a VESA mounting option. The optional 3-track magnetic stripe reader (MSR), is easily installed by the user, providing an elegant, integrated solution. The display is factory sealed against dirt and dust, and the unit offers a choice of touchscreen technologies: the anti-glare clarity and superior performance of IntelliTouch surface acoustic wave, time- tested AccuTouch five-wire resistive, and IntelliTouch Pro projected capacitive (PCAP) for a multi-touch experience and zero-bezel, seamless design.
The Elo 1515L 15" LCD desktop touchmonitor provides an affordable product in a convenient, space- saving design that both first-time and experienced users can deploy more easily, reliably, and more cost- effectively than ever before.
The Elo 1515L 15" LCD desktop touchmonitor provides an affordable product in a convenient, space- saving design that both first-time and experienced users can deploy more easily, reliably, and more cost- effectively than ever before.
See More
SPECIFICATIONS
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E210772
Manufacturer Website Address
http://www.elotouch.com
Brand Name
Elo
Product Series
1000
Product Model
1515L
Product Name

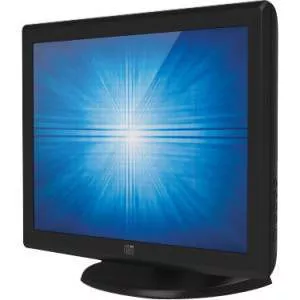

1515L 15" Desktop Touchmonitor
Product Type
LCD Touchscreen Monitor
Technical Information
Screen Size
15"
Screen Mode
XGA
Response Time
11.70 ms
Aspect Ratio
4:3
Horizontal Viewing Angle
140°
Vertical Viewing Angle
115°
Backlight Technology
LED
Video
Maximum Resolution
1024 x 768
Color Supported
16.7 Million Colors
Contrast Ratio
700:1
Brightness
250 Nit
Touchscreen Information
Touchscreen
Yes
Touchscreen Type
AccuTouch
Interfaces/Ports
USB
Yes
VGA
Yes
Power Description
Operating Power Consumption
13 W
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
75 x 75
Color
Dark Gray
Height
12.2"
Width
13.8"
Depth
6.9"
Weight (Approximate)
7.30 lb
Weight with Stand (Approximate)
10.60 lb
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
Warranty
Limited Warranty
3 Year
See More
