The Powerware FERRUPS Rackmount UPS power supply delivers the best power quality and unmatched reliability in configurable power management. Offering more than just surge protection and backup power, the FERRUPS Rackmount UPS system features our patented ferroresonant UPS technology to deliver bulletproof power protection.
About
The Powerware FERRUPS Rackmount UPS power supply delivers the best power quality and unmatched reliability in configurable power management. Offering more than just surge protection and backup power, the FERRUPS Rackmount UPS system features our patented ferroresonant UPS technology to deliver bulletproof power protection.
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
FD000BB3A0A0A0A
Manufacturer Website Address
http://www.eaton.com
Brand Name
Eaton
Product Series
FE
Product Model
FD000BB3A0A0A0A
Product Name

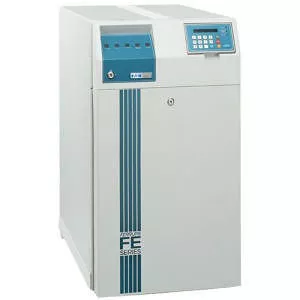

FERRUPS 1.15kVA UPS, 120V
Product Type
Double Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA 5-20P
Receptacle Type
NEMA 5-20R
Receptacle Detail
6 x NEMA 5-20R
Emergency Power OFF
Yes
Power Description
Load Capacity (VA)
1150 VA
Load Capacity (Watt)
800 W
Input Voltage
110 V AC
Output Voltage
120 V AC
Waveform Type
Sine Wave
Management
Alarm
Controls/Indicators
Status Indicators
- AC Line
- Ready
- Charging
- Battery Power
- Alarm
Interfaces/Ports
Serial Port
Yes
Battery Information
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
18 Minute
Backup/Run Time (Half Load)
48 Minute
Typical Battery Recharge Time
4 Month
Environmental Conditions
Maximum Operating Temperature
140°F (60°C)
Sound Emission (A-Weighted)
49 dB(A)
Miscellaneous
Package Contents
- FERRUPS FD000BB3A0A0A0A UPS
- Power Management Software
- Communication Cable
Additional Information
- Delivers bulletproof protection with Ferroresonant technology
- Converts power from almost any AC source into computer-grade power
- Prolongs backup time with external battery cabinets
- Conditions incoming power without depleting the battery to preserve battery power for complete power outages
- Adapts to virtually any application with customizable receptacles, input plugs, voltage matching transformers, and bypass switches
- Ensures data integrity with free Software Suite bundle including LanSafe, PowerVision®, and Foreseer®
- Incorporates connectivity products to fit various environments and applications
Certifications & Standards
- UL
- CSA (cUL)
- FCC Class A
- ANSI/EEE C62.41 (1980)
- ANSI/EEE C62.45 (1987)
- IEC 801-2
- IEC 801-4
- IEC 801-5
- UL 1449
- ISO 9001
- UL 1778
- IEC 801-146
Software Included
Eaton Software Suite
Country of Origin
United States
Warranty
Limited Warranty
2 Year
