ABOUT

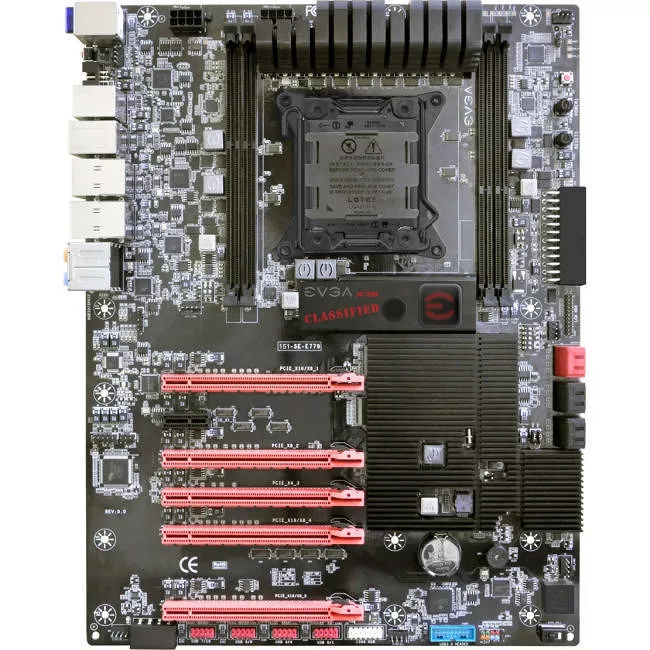

The next generation of Classified motherboards have arrived. The EVGA X79 Classified is the ultimate motherboard with a 12+2 Phase PWM Power Design, 100% POSCAP Capacitors, a 300% Increase in CPU Socket Gold Content, Dual 8pin CPU Power Connectors and more. If you are looking for the ultimate overclocking machine this is the motherboard for you. Additionally, support for next generation features like USB 3.0, SATA 6G and onboard Bluetooth give you the storage and connectivity support you desire. Oh, and did we mention this board has the capability to support NVIDIA 4-way SLI for the ultimate in extreme graphics performance?
See More
SPECIFICATIONS
General Information
Manufacturer
EVGA Corporation
Manufacturer Part Number
151-SE-E779-K3
Manufacturer Website Address
http://www.evga.com
Brand Name
EVGA
Product Model
X79 Classified
Product Name
X79 Classified Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket R LGA-2011
Processor Supported
Core i7
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
32 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC898
Audio Channels
7.1
Network & Communication
Bluetooth
Yes
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
6
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
5
Interfaces/Ports
eSATA
Yes
Number of eSATA Ports
2
Total Number of USB Ports
10
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
8
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
10
Number of Onboard USB 2.0 Ports
8
Number of Onboard USB 3.0 Ports
2
Total Number of Onboard FireWire/i.LINK Ports
1
Number of Onboard FireWire/i.LINK 400 Ports
1
Physical Characteristics
Form Factor
XL-ATX
Height
4.1"
Width
10.4"
Depth
13.5"
Weight (Approximate)
4.18 lb
Miscellaneous
Package Contents
- X79 Classified Desktop Motherboard
- EVGA Driver Installation Disc With EVGA E-LEET
- Rear Case I/O Panel
- 2 x SATA 3G Data Cables
- 2 x SATA 6G Data Cables
- 2 x SATA Power Adapters
- 2 x Port USB / 1394 Firewire Port Bracket
- 2 x USB 3.0 Bracket
- 2-way SLI Bridge
- Visual Installation Guide
- Manual
Warranty
Limited Warranty
3 Year
See More
