ABOUT

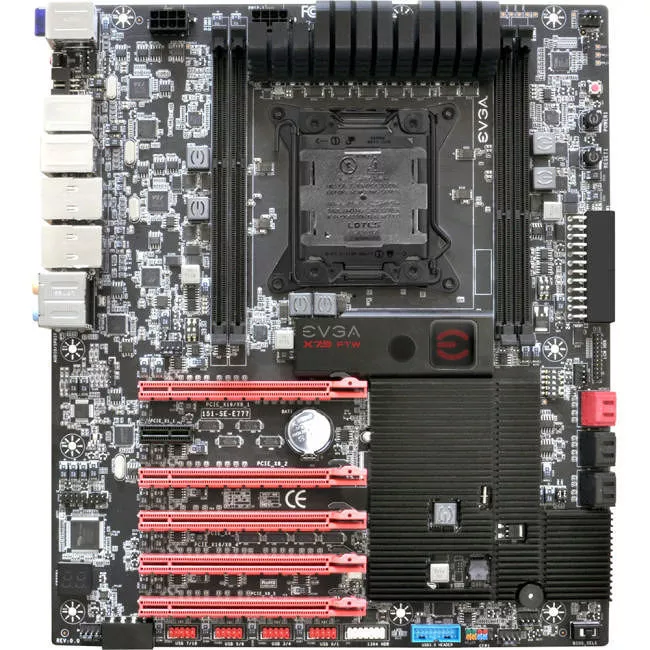

True next generation motherboards have arrived with the EVGA X79 FTW!. This motherboard packs in the latest technologies to give you an uncompromised experience!.
Uncompromised Performance Unparalleled memory bandwidth with true quad channel DDR3 memory support and intel Turbo Boost Technology 2.0 gives you intelligent computing by optimizing performance on the fly! up to 4-way SLI gives you the expansion you need to maximize your graphics performance.
See More
SPECIFICATIONS
General Information
Manufacturer
EVGA Corporation
Manufacturer Part Number
151-SE-E777-KR
Manufacturer Website Address
http://www.evga.com
Brand Name
EVGA
Product Name
Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
Turbo Boost Technology 2.0
Processor Socket
Socket R LGA-2011
Processor Supported
Core i7
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Memory Form Factor
DIMM
Maximum Memory
32 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC898
Audio Channels
7.1
Network & Communication
Bluetooth
Yes
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
6
Number of PCI Express x1 Slots
1
Number of PCI Express x16 Slots
5
Interfaces/Ports
Total Number of USB Ports
10
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
8
Total Number of FireWire/i.LINK Ports
1
Number of FireWire/i.LINK 800 Ports
1
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
PS/2 Port
Yes
Number of PS/2 Ports
1
Onboard Interfaces
Number of SATA Interfaces
6
Total Number of Onboard USB Ports
10
Number of Onboard USB 2.0 Ports
8
Number of Onboard USB 3.0 Ports
2
Total Number of Onboard FireWire/i.LINK Ports
1
Number of Onboard FireWire/i.LINK 800 Ports
1
Power Description
Power Supply Supported
EPS12V
Physical Characteristics
Form Factor
Extended ATX
Width
12"
Depth
10.4"
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
See More
