EVG-111-HR-E973-KR-00
MPN: 111-HR-E973-KR

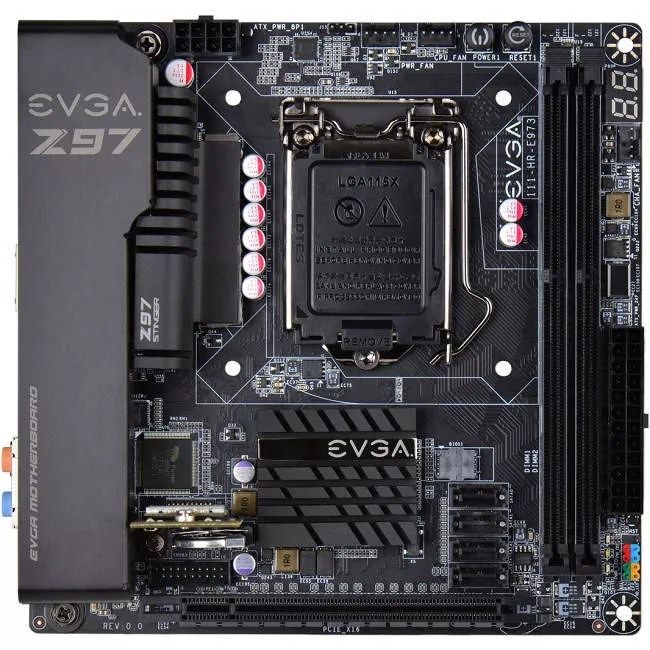

EVGA 111-HR-E973-KR Desktop Motherboard - Intel Z97 Express Chipset - Socket H3 LGA-1150

Highlights
General Information
Manufacturer
EVGA Corporation
Manufacturer Part Number
111-HR-E973-KR
Manufacturer Website Address
http://www.evga.com
Brand Name
EVGA
Product Model
Z97 Stinger WiFi
Product Name
Z97 Stinger WiFi Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
Z97 Express
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i7
  • Core i5
  • Core i3
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Memory Form Factor
    DIMM
    Maximum Memory Supported
    16 GB
    Memory Standard
  • DDR3-2666/PC3-21330
  • DDR3-2400/PC3-19200
  • DDR3-2133/PC3-17000
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3L-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
    • Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC898
    Audio Channels
    7.1
    Network & Communication
    Bluetooth
    Yes
    Gigabit Ethernet
    Yes
    Wireless LAN
    Yes
    Wireless LAN Standard
    IEEE 802.11b/g/n
    I/O Expansions
    Number of Total Expansion Slots
    1
    PCI Express Standard
    PCI Express 3.0
    Total Number of PCI Express Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    eSATA
    Yes
    Number of eSATA Ports
    1
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    4
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DisplayPort
    Yes
    Number of DisplayPort Outputs
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    4
    Number of Onboard USB 2.0 Ports
    2
    Number of Onboard USB 3.0 Ports
    2
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"
    Miscellaneous
    Package Contents
    • Z97 Stinger WiFi Desktop Motherboard
    • Drive Installation Case
    • Rear Case I/O Panel
    • Rear Case I/O Cover
    • 2 SATA 6G Data Cables
    • Wi-Fi Antenna Set
    • Manual
