DYN-K785-00
MPN: K785

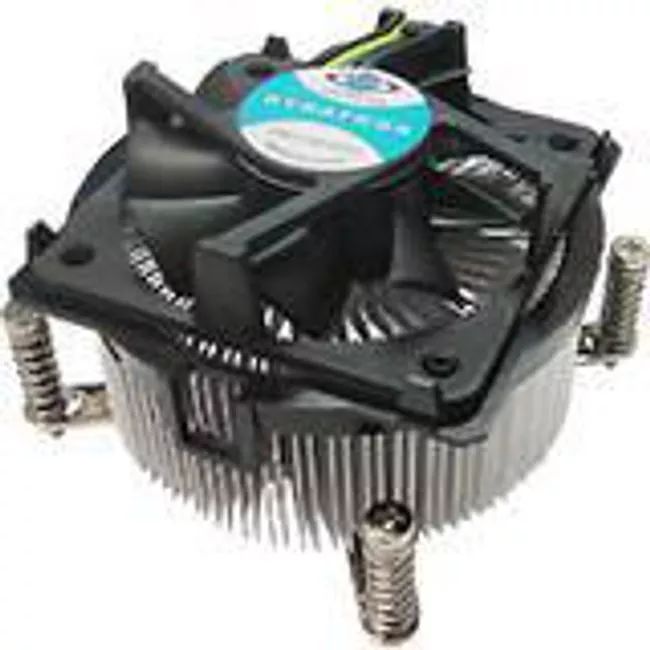

Dynatron K785 77 x 20 mm Fan with PWM Cooler

Highlights
General Information
Manufacturer
Dynatron Corporation
Manufacturer Part Number
K785
Manufacturer Website Address
http://www.dynatron-corp.com
Brand Name
Dynatron
Product Model
K785
Product Name
K785 Cooling Fan/Heatsink
Product Type
Cooling Fan/Heatsink
Fan Information
Number of Fans
1
Fan Bearing Type
Dual Ball Bearing
Fan Speed (Max)
4500 rpm
Maximum Airflow
340.8 gal/min
Airflow Details

1 x 45.56CFM

Heatsink Information
Compatible Intel Socket
  • H2 LGA-1155
  • H LGA-1156
    • Interfaces/Ports
    Connectors
    4-pin PWM
    Power Description
    Input Voltage
    12 V DC
    Physical Characteristics
    Heatsink Material
    Aluminum
    Material Details
  • Copper Insert
    • Form Factor
    Internal
    Maximum Fan Diameter
    3.03"
    Fan Diameter Details

    1 x 77mm

    Height
    2.4"
    Width
    3.5"
    Depth
    3.5"
    Weight (Approximate)
    1.10 lb
    Miscellaneous
    Compatibility
    Intel 2nd Generation Series Processors:
    • Core i7-2600
    • Core i5-2500
    Intel Xeon Processors:
    • 1220
    • 1220L
    • 1225
    • 1230
    • 1235
    • 1240
    • 1245
    • 1260L
    • 1270
    • 1275
    • 1280
    • Core i7-870
    • Core i7-860
    Intel Processors:
    • Core i3-530
    • Core i3-540
    • Core i5-650
    • Core i5-660
    • Core i5-661
    • Core i5-670
    • Core i5-750
    Application/Usage
    Processor
    Certifications & Standards
    UL
    Environmentally Friendly
    Yes

    Specifications
