DYN-K666-00
MPN: K666

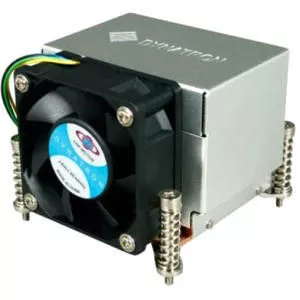

Dynatron K666 Cooling Fan/Heatsink

Highlights
General Information
Manufacturer
Dynatron Corporation
Manufacturer Part Number
K666
Manufacturer Website Address
http://www.dynatron-corp.com
Brand Name
Dynatron
Product Model
K666
Product Name
K666 Cooling Fan/Heatsink
Package Type
Retail
Product Type
Cooling Fan/Heatsink
Fan Information
Number of Fans
1
Fan Bearing Type
Dual Ball Bearing
Fan Speed (Max)
5000 rpm
Maximum Airflow
197.9 gal/min
Airflow Details

1 x 26.45CFM

Heatsink Information
Compatible Intel Socket
  • H2 LGA-1155
  • H LGA-1156
    • Interfaces/Ports
    Connectors
    4-pin PWM
    Power Description
    Input Voltage
    12 V DC
    Physical Characteristics
    Heatsink Material
  • Aluminum
  • Copper
    • Form Factor
    Internal
    Maximum Fan Diameter
    2.36"
    Fan Diameter Details

    1 x 60mm

    Height
    2.5"
    Width
    3.6"
    Depth
    3.3"
    Weight (Approximate)
    1.80 lb
    Miscellaneous
    Compatibility
    Intel 2nd Generation Processors:
    • Core i7-2600 Series
    • Core i5-2500 Series
    Intel Xeon Processors:
    • 1220
    • 1220L
    • 1225
    • 1230
    • 1235
    • 1240
    • 1245
    • 1260L
    • 1270
    • 1275
    • 1280
    • 3400 Series
    • Core i7-870
    • Core i7-860
    • Core i3-530
    • Core i3-540
    • Core i5-650
    • Core i5-650
    • Core i5-660
    • Core i5-661
    • Core i5-670
    • Core i5-750
    Application/Usage
    Processor
    Certifications & Standards
    UL
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS

    Specifications
