DTV-MCU-100J-00
MPN: MCU-100J

Datavideo MCU-100J Multi-Camera Control Unit - JVC


Highlights

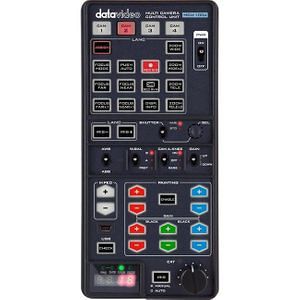

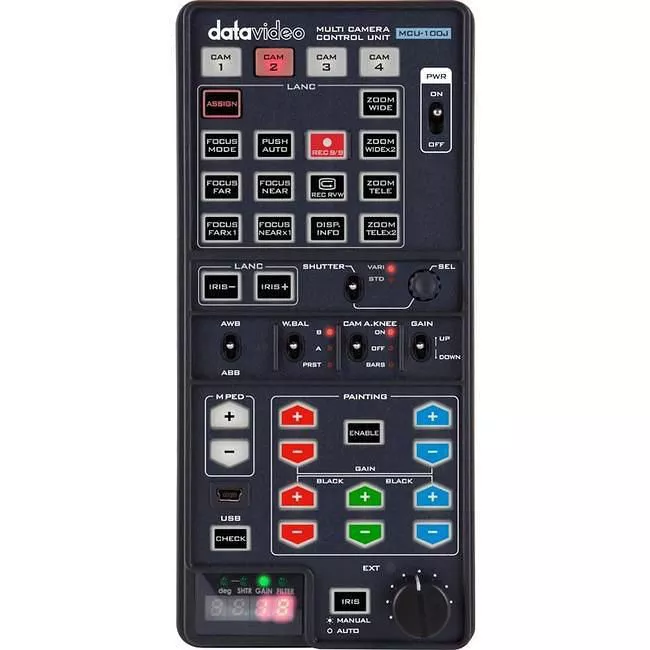

The MCU-100J Remote Control Unit is designed for remote control of JVC studio or portable-type colour video cameras and camcorders.

The unit allows the user to directly connect up to maximum 4 cameras or camcorders via a Cat.5e or Cat.6 Ethernet cable and control the connected camera or camcorder from a distance of up to 300 m.

The MCU-100J is definitely a total solution for easy operation of major camera functions in a cost effective way.
  • Four RJ-45 connections allow remote setup of up to four JVC cameras.
  • RJ-45 cabling allows the unit to be placed up to 300m away from the camera(s).
  • Support LANC & multicore control interface.
  • Control of Record and Record review functions.
  • Control of Camera User memory functions.
  • Control of Shutter / Focus / Zoom functions.
  • Control of Iris adjustment.
  • Control of AWB function.
  • Control of White Balance A, B and Preset functions.
  • Control of Camera Gain adjustment.
  • RGB Black Level / R & B gain and Master Pedestal controls
