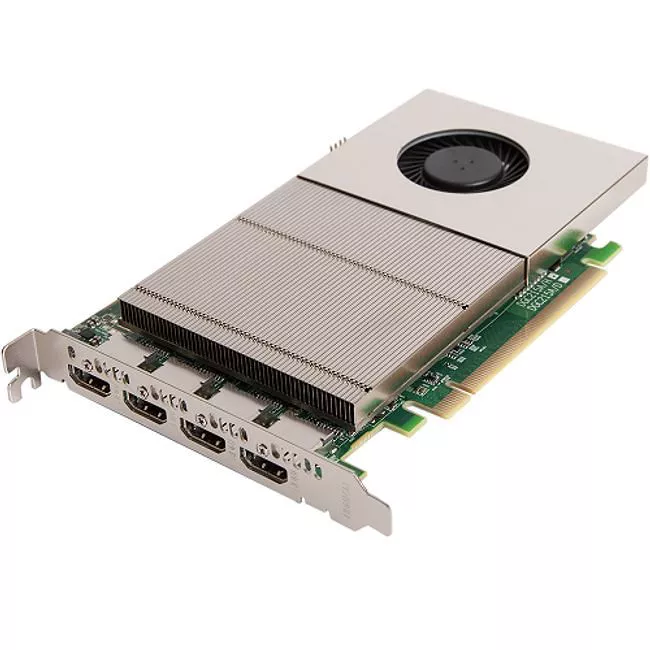

Datapath IMAGE4K 8GB PCIe Graphics Card

Image4K, powering up to 24 4K screens

The Image4K can power up to 24 4K or 96 HD screens from a single system (using six Image4K cards) making it four times more powerful than the ImageDP4+.

Full 4K High Bandwidth Graphics Card

Designed for professional, multi-screen and video wall installations, the Image4K is a very powerful graphics card, enabling scalable solutions, that delivers full 4K60 4:4:4 content over four HDMI 2.0 outputs.

Fully integrated with Datapath's graphical setup wizard, the Image4K is easy to configure for different combinations of monitors, projectors, or LED controllers. Output resolution, rotation and wall layout are all easily configured using the intuitive graphical interface in a matter of minutes.

Software Drivers

We have a highly optimised driver to run efficiently with Datapath hardware available for use with Windows 10 64bit. The function of the display driver is to present one large desktop to the Windows operating system. The multi-screen driver will support up to 24 screens.

WallControl 10 Software

Datapath WallControl 10 software enables you to simply launch and position video and application windows to create complex wall layout configurations. WallControl 10 presents a representational window of the entire display wall showing position and size of windows, including a live sample of all video content. With the full version it is possible to save layouts and recall them for future use and also operate WallControl 10 on a remote PC via a network connection.
