MPN: ACDP12CAB/50

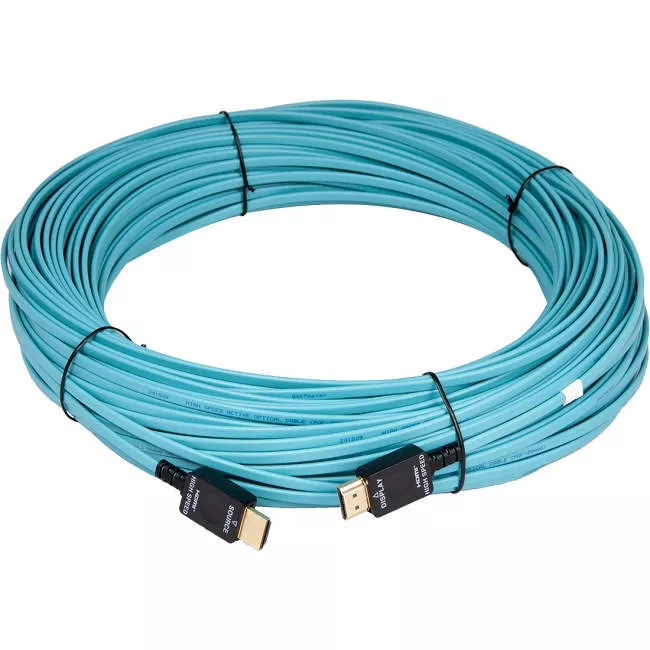

Datapath ACDP12CAB/50 ActiveConnect DisplayPort 1.2 with 50m Cable
Highlights
About
Specifications
FIBRE OPTIC DISPLAYPORT SOLUTIONS
Deploying any Video Wall or Digital Signage Installation requires careful planning around how to connect sources to video wall equipments and graphics cards to screens.
High quality cables can be sizable and difficult to manage, especially when installers are managing large bundles of cables from a video wall controller to a bank of screens. Many long range solutions require additional power at both the transmitter and receiver end of the solution.
Datapath's ActiveConnect series solves all these problems with a single DisplayPort to DisplayPort fibre optic cable, that is available in a variety of lengths up to 100m.
The ActiveConnect cables are 7mm thick and require no additional power. They can provide a direct connection from the ImageDP4 to a DisplayPort capable screen.
FEATURES
The Datapath ActiveConnect cables are available with either DisplayPort1.2 connectors. Both types allow for the transmission of 4k signals (3840x2160p) at 60 frames per second.
The ActiveConnect series of cables can be used to connect a 4k Media Player to Vision Capture cards or from the ImageDP4 graphics cards to DisplayPort capable monitors or projectors. Each cable is HDCP ompliant allowing for protected sources to be carried within the Datapath system. The ActiveConnect cables do not require any additional power and, at 7mm thick, installers can easily deploy large numbers of screens using cables that take little space. Each cable is Plenum rated and can be safely installed into building cavities such as walls, floors or ceilings.
Each cable has a maximum bend radius of 6mm allowing cables to be manoeuvred around obstacles with ease. The fibre is made from high quality plastics which mean that cables are robust and capable of being deployed in challenging environments.
Deploying any Video Wall or Digital Signage Installation requires careful planning around how to connect sources to video wall equipments and graphics cards to screens.
High quality cables can be sizable and difficult to manage, especially when installers are managing large bundles of cables from a video wall controller to a bank of screens. Many long range solutions require additional power at both the transmitter and receiver end of the solution.
Datapath's ActiveConnect series solves all these problems with a single DisplayPort to DisplayPort fibre optic cable, that is available in a variety of lengths up to 100m.
The ActiveConnect cables are 7mm thick and require no additional power. They can provide a direct connection from the ImageDP4 to a DisplayPort capable screen.
FEATURES
The Datapath ActiveConnect cables are available with either DisplayPort1.2 connectors. Both types allow for the transmission of 4k signals (3840x2160p) at 60 frames per second.
The ActiveConnect series of cables can be used to connect a 4k Media Player to Vision Capture cards or from the ImageDP4 graphics cards to DisplayPort capable monitors or projectors. Each cable is HDCP ompliant allowing for protected sources to be carried within the Datapath system. The ActiveConnect cables do not require any additional power and, at 7mm thick, installers can easily deploy large numbers of screens using cables that take little space. Each cable is Plenum rated and can be safely installed into building cavities such as walls, floors or ceilings.
REDUCED SIZE AND WEIGHT
The ActiveConnect series of cables are only 7mm thick and are available in lengths of up to 100m. The weight of the cable equates to approx 15 grams per meter (including connectors).Each cable has a maximum bend radius of 6mm allowing cables to be manoeuvred around obstacles with ease. The fibre is made from high quality plastics which mean that cables are robust and capable of being deployed in challenging environments.
