Highlights:
  • Product Type: Wireless Access Point
  • Wireless LAN Standard: IEEE 802.11ac
  • Wireless Transmission Speed: 1.27 Gbit/s
  • Ethernet Technology: Ethernet | Fast Ethernet | Gigabit Ethernet
Contact sales for pricing

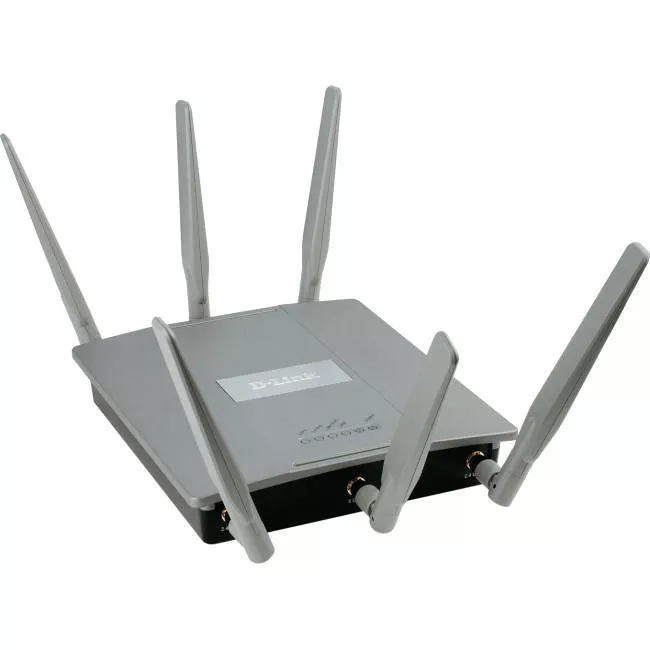

The DAP-2695 AirPremier AC1750 Concurrent Dual Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC.

Super-fast Wireless AC Performance

The DAP-2695 delivers reliable, high-speed wireless performance using the latest 802.11ac standards with maximum wireless signal rates of up to 450 Mbps over the 2.4 GHz band, and 1300 Mbps over the 5 GHz band. This, coupled with support for the Wi-Fi Multimedia™ (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2695 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2695's web GUI using a drop-down menu option to select customized priority rules. Additionally, the DAP-2695 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.

General Information
Manufacturer
D-Link Systems, Inc
Manufacturer Part Number
DAP-2695
Manufacturer Website Address
http://www.dlink.com
Brand Name
D-Link
Product Line
AirPremier
Product Model
DAP-2695
Product Name
AirPremier AC1750 Concurrent Dual Band PoE Access Point
Product Type
Wireless Access Point
Technical Information
Wireless LAN Standard
IEEE 802.11ac
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz
ISM Maximum Frequency
2.48 GHz
UNII Minimum Frequency
5.15 GHz
UNII Maximum Frequency
5.85 GHz
Total Number of Antennas
6
Antenna Gain
  • 4 dBi
  • 6 dBi
  • Wireless Transmission Speed
    1.27 Gbit/s
    Wireless Security
    • WPA-Personal
    • WPA-Enterprise
    • WPA2-Personal
    • WPA2-Enterprise
    • 64/128-bit WEP
    • MAC Address Access Control
    • Network Access Protection (NAP)
    • RADIUS
    Features
    Quality of Service (QoS)
    Interfaces/Ports
    Ethernet Technology
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • Number of Network (RJ-45) Ports
    2
    Network (RJ-11)
    No
    PoE (RJ-45) Port
    No
    Management Port
    Yes
    Management & Protocols
    Management
    • Telnet
    • SNMP
    • View Module - Private MIB
    • AP Manager II
    • AP Array
    • Web-based Management
    • VLAN
    Power Description
    Input Voltage
    48 V DC
    Physical Characteristics
    Form Factor
    Wall Mountable
    Height
    1.4"
    Width
    7.8"
    Depth
    7.5"
    Weight (Approximate)
    2.52 lb
