ABOUT
The D-Link ANT24-1801 antenna provides extended coverage for an existing 802.11b wireless local area network (WLAN). The D-Link ANT24-1801 comes with a conversion cable that allows connection directly to the D-Link DWL-900AP+ wireless access point, DI-614+ wireless router, DI-714P+ wireless router, DWL-900AP wireless access point, DI-714 wireless router and the DI-713P wireless router Rev C1 or later wireless broadband router.
SPECIFICATIONS
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: ANT24-1801
Manufacturer Website Address: http://www.dlink.com
Brand Name: D-Link
Product Model: ANT24-1801

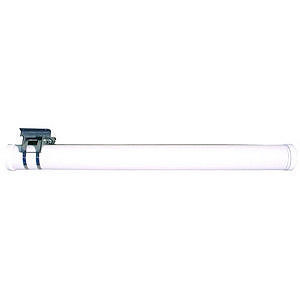

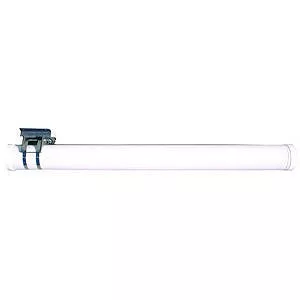

Product Name: ANT24-1801 High Gain Directional Yagi Antenna
Marketing Information:
The D-Link ANT24-1801 antenna provides extended coverage for an existing 802.11b wireless local area network (WLAN). The D-Link ANT24-1801 comes with a conversion cable that allows connection directly to the D-Link DWL-900AP+ wireless access point, DI-614+ wireless router, DI-714P+ wireless router, DWL-900AP wireless access point, DI-714 wireless router and the DI-713P wireless router Rev C1 or later wireless broadband router.
Product Type: Antenna
Directivity: Directional
Frequency Band Type: UHF
Frequency: 2.40 GHz to 2.50 GHz
Antenna Gain: 18 dBi
Impedance: 50 Ohm
Polarization: Linear Vertical
Survival Wind Speed: 2182.40 in/s
Cable Length: 1.50 ft
Connector Type: N-Type
Height: 39.4"
Width: 3.5"
Weight (Approximate): 7.72 lb
Application/Usage: Television
Additional Information:
- Radom material: ABS, UV Resistant
- Radom color: White
- Lightning protection: DC ground
Limited Warranty: 1 Year
