About
Specifications

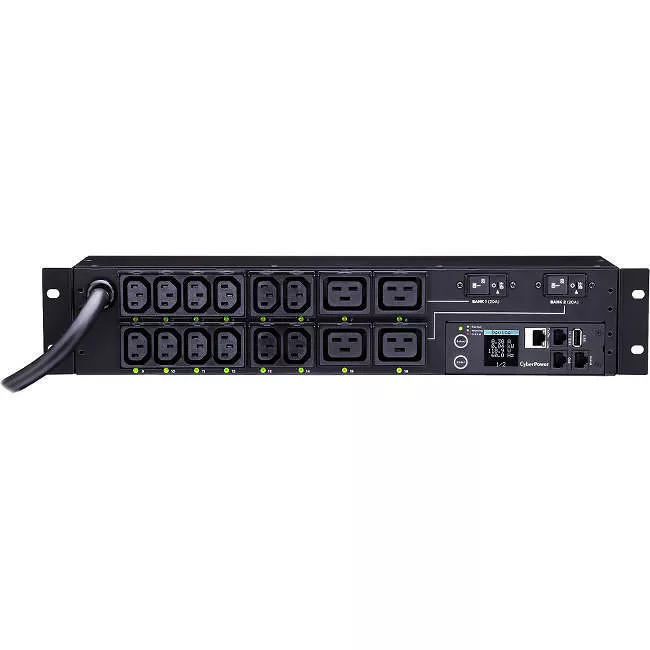

The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
About
The CyberPower PDU41008, a 16-outlet (front), 2U rackmount switched power distribution unit (PDU), provides 200-240V 30A output. It distributes power to twelve (12) IEC C13 receptacles and four (4) IEC C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
PDU41008
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Switched PDU
Product Model
PDU41008
Product Name
PDU41008 Single Phase 200 - 240 VAC 30A Switched
Product Type
PDU
Technical Information
PDU Type
Switched
Phase
Single Phase
Plug/Connector Type
NEMA L6-30P
Receptacle Type
Receptacle Detail
Protection Type
Overload Protection
Locking Receptacles
Cord Retention Tray
Features
Power Description
Input Voltage
230 V AC
Input Voltage Range
200 V AC - 240 V AC
Output Voltage
Output Voltage Range
200 V AC - 240 V AC
Input Current
30 A
Input Frequency
60 Hz
Management
Management
Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
Remote Outlet Switching
Yes
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Horizontal
Mount Type
Form Factor
Horizontal/Vertical
Rack Height
2U
Cord Length
12 ft
Height
3.5"
Width
17.1"
Depth
4.4"
Weight (Approximate)
9.90 lb
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
140°F (60°C)
Minimum Storage Temperature
5°F (-15°C)
Maximum Storage Temperature
149°F (65°C)
Miscellaneous
Package Contents
- PDU41008
- 2 x Mounting Brackets
- 12 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws and Washers
- 2 x Cord Retention Trays
- 12 x M3x6 Cord Retention Tray Screws
- 24 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- Download Card
Additional Information
Application/Usage
Certifications & Standards
- UL62368
- FCC Class A
- ICES-003: Issue 7
Energy Star
No
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
