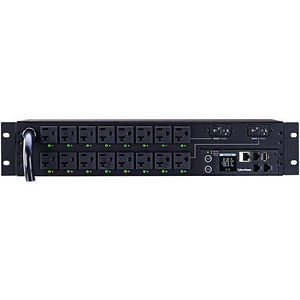

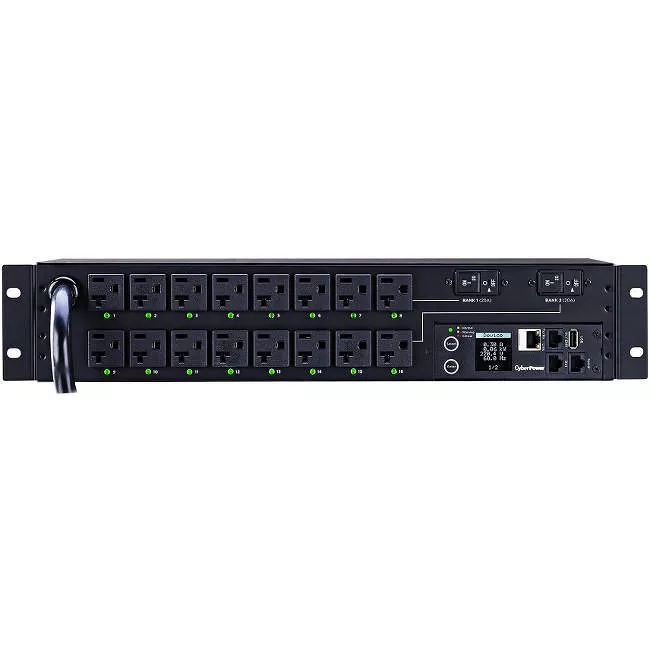

The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
About
The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
PDU41003
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Switched PDU
Product Model
PDU41003
Product Name
PDU41003 Single Phase 100 - 120 VAC 30A Switched
Product Type
PDU
Technical Information
PDU Type
Switched
Design
Non-Modular
Phase
Single Phase
Plug/Connector Type
NEMA L5-30P
Plug/Connector Detail
1 x NEMA L5-30P
Receptacle Type
NEMA 5-20R
Receptacle Detail
16 x NEMA 5-20R
Protection Type
Overload Protection
Locking Receptacles
Cord Retention Tray
Features
Power Description
Input Voltage
120 V AC
Input Voltage Range
100 V AC - 120 V AC
Output Voltage
Output Voltage Range
100 V AC - 120 V AC
Input Current
30 A
Input Frequency
60 Hz
Circuit Breaker
Yes
Management
Management
Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
Remote Outlet Switching
Yes
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Horizontal
Mount Type
Form Factor
Horizontal/Vertical
Rack Height
2U
Cord Length
12 ft
Height
3.5"
Width
17.1"
Depth
4.4"
Weight (Approximate)
7.30 lb
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
140°F (60°C)
Minimum Storage Temperature
5°F (-15°C)
Maximum Storage Temperature
149°F (65°C)
Miscellaneous
Package Contents
- PDU41003 PDU
- 2 x Mounting Brackets
- 12 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws and Washers
- 2 x Cord Retention Trays
- 12 x M3x6 Cord Retention Tray Screws
- 24 x Cable Ties, RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- Download Card
Additional Information
Application/Usage
Certifications & Standards
- UL62368
- FCC Class A
- ICES-003: Issue 7
Energy Star
No
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
