About
Specifications

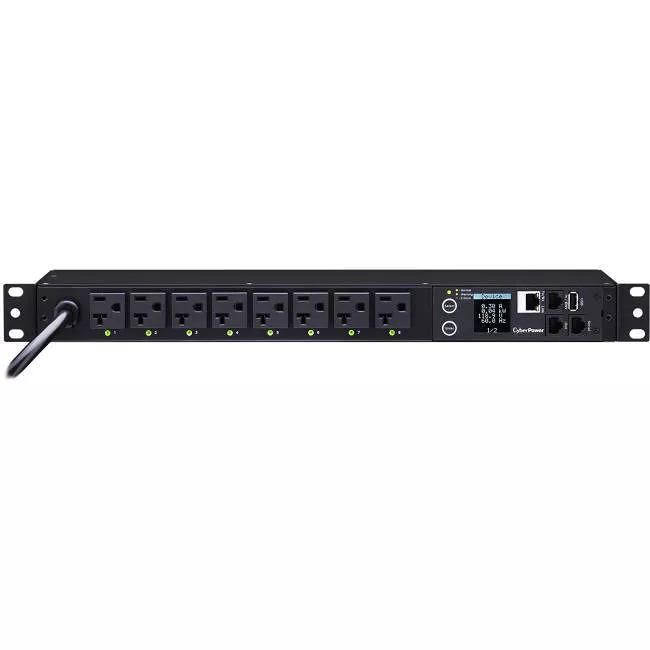

The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
About
The CyberPower PDU41002, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 20A output. It distributes power to 8 NEMA 5-20R receptacles from a single NEMA 5-20 or L5-20 (with adaptor) plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
PDU41002
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Switched PDU
Product Model
PDU41002
Product Name
PDU41002
Product Type
PDU
Technical Information
PDU Type
Switched
Phase
Single Phase
Plug/Connector Type
NEMA L5-20P
Receptacle Type
NEMA 5-20R
Receptacle Detail
8 x NEMA 5-20R
Locking Receptacles
Cord Retention Tray
Features
Power Description
Input Voltage
120 V AC
Input Voltage Range
100 V AC - 120 V AC
Output Voltage
Output Voltage Range
100 V AC - 120 V AC
Input Current
20 A
Input Frequency
60 Hz
Circuit Breaker
Yes
Management
Management
Protocols:
- IPv4
- TCP
- IP
- UDP
- SNMPv1
- HTTP
- NTP
- DNS
- Telnet
- DHCP
- SMTP
- FTP
- IPv6
- SNMPv3
- HTTPs
- SSH
- SSL
- TLS
- LDAP(S)
- RADIUS
- Syslog
- CLI
- Windows AD
- SNMP
Remote Outlet Switching
Yes
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Metal
Mounting Orientation
Horizontal/Vertical
Mount Type
Form Factor
Rack
Rack Height
1U
Cord Length
12 ft
Height
1.8"
Width
17.1"
Depth
4.4"
Weight (Approximate)
7.30 lb
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
140°F (60°C)
Minimum Storage Temperature
5°F (-15°C)
Maximum Storage Temperature
149°F (65°C)
Miscellaneous
Package Contents
- PDU41002
- Adaptor
Additional Information
Application/Usage
Certifications & Standards
- UL62368
- FCC Class A
- ICES-003: Issue 7
Energy Star
No
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
UL Listed
Yes
Warranty
Limited Warranty
3 Year
