About
Specifications

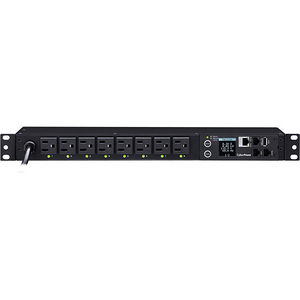

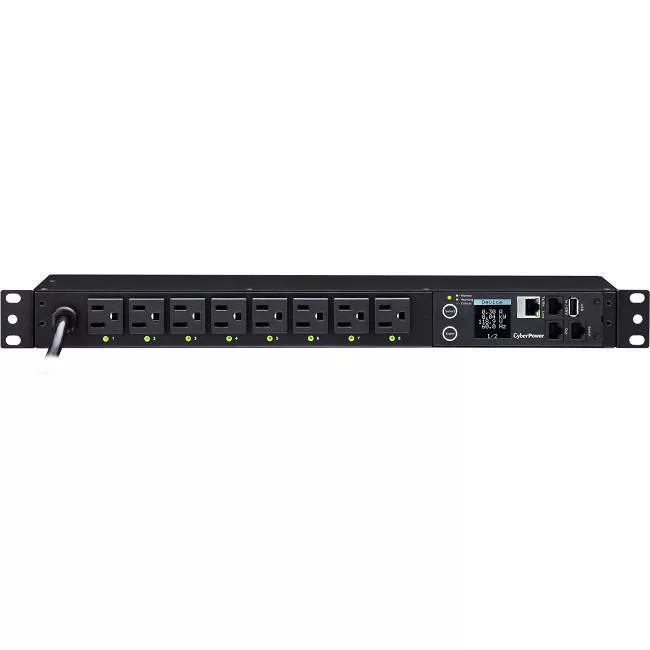

The CyberPower PDU41001, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15 plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
About
The CyberPower PDU41001, an 8-outlet (front), 1U rackmount switched power distribution unit (PDU), provides 120V 15A output. It distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15 plug with unfiltered electrical pass-through. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally by using the LCD controls.
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
PDU41001
Manufacturer Website Address
https://www.cyberpowersystems.com/
Brand Name
CyberPower
Product Series
Switched PDU
Product Model
PDU41001
Product Name
PDU41001 Single Phase 100 - 120 VAC 15A Switched
Product Type
PDU
Technical Information
PDU Type
Switched
Phase
Single Phase
Plug/Connector Type
NEMA 5-15P
Receptacle Type
NEMA 5-15R
Receptacle Detail
8 x NEMA 5-15R
Protection Type
Overload Protection
Locking Receptacles
Cord Retention Tray
Features
Power Description
Input Voltage
120 V AC
Input Voltage Range
100 V AC - 120 V AC
Output Voltage
Output Voltage Range
100 V AC - 120 V AC
Input Current
15 A
Input Frequency
60 Hz
Circuit Breaker
Yes
Management
Management
SNMP / HTTP Remote Monitoring:
Remote Outlet Switching
Yes
Interfaces/Ports
Network (RJ-45)
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Steel
Mounting Orientation
Horizontal/Vertical
Mount Type
Rack Height
1U
Cord Length
12 ft
Height
1.8"
Width
4.4"
Depth
17.1"
Weight (Approximate)
5.70 lb
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
140°F (60°C)
Minimum Storage Temperature
5°F (-15°C)
Maximum Storage Temperature
149°F (65°C)
Miscellaneous
Package Contents
- PDU41001 8-Outlet PDU
- 4 x Mounting Brackets (2 short and 2 long)
- 10 x Flat Head M4x8 Bracket Mounting Screws
- Cord Retention Tray
- 10 x Cable Ties
- 6 x M3x6 Cord Retention Tray Mounting Screws
- 6 x M5x12 Screws
- 6 x Washers
- RJ45/DB9 Serial Port Connection Cable
- User Manual
- Registration Card
- CD
Additional Information
Application/Usage
Certifications & Standards
- UL62368
- FCC Class A
- ICES-003: Issue 7
Energy Star
No
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
