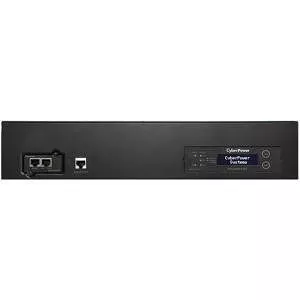

CyberPower PDU30MT17AT 120 VAC 30A Metered ATS PDU

The CyberPower PDU30MT17AT, a 17-outlet 2U rack mount metered auto transfer switch (ATS) PDU, provides 100-120V / 30A output. The PDU distributes power to 1 NEMA L5-30R/16 5-20R receptacles from redundant NEMA L5-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.

The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.

The PDU30MT17AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).

The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.

• 120V 30A ATS PDU with 16 NEMA 5-20R outlets plus 1 NEMA L5-30R outlet. Dual NEMA L5-30P 30A 120V input connections
• Metered Automatic Transfer Switching (ATS) to provide a redundant input power option
• Digital Display (Load, Voltage, and KW) for on-site monitoring of total PDU load
• SNMP/HTTP option slot for real-time monitoring and event logging of the ATS PDU
