MPN: PDU15MHVIEC12AT
CyberPower PDU15MHVIEC12AT 200 - 240 VAC 15A Metered ATS PDU
Highlights
About
Specifications

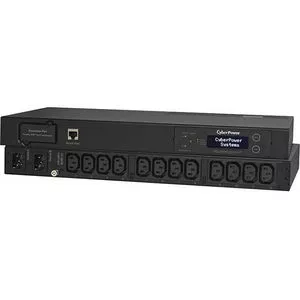

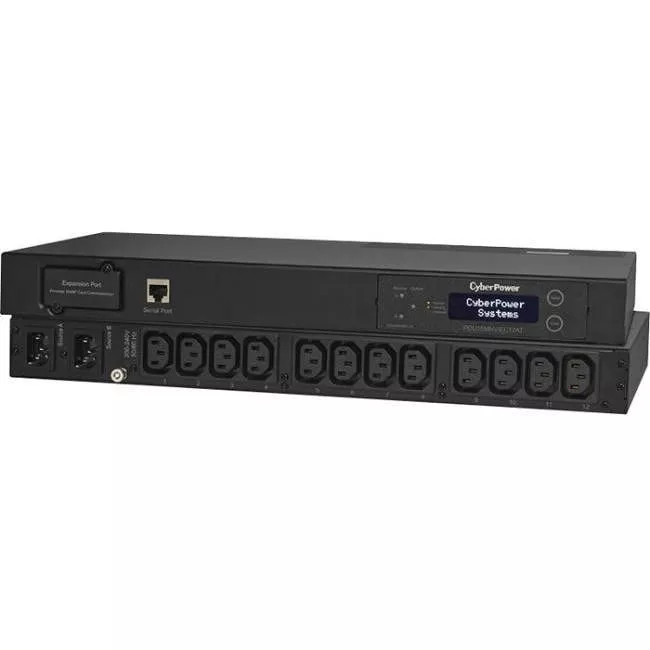

The CyberPower PDU15MHVIEC12AT, a 12-outlet 1U rack mount metered auto transfer switch (ATS) PDU, provides 200-240V / 15A output. The PDU distributes power to 12 IEC-320 C13 receptacles from redundant IEC-320 C14 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.
The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.
The PDU15MHVIEC12AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
The LCD provides local monitoring of the PDU. Electrical current is displayed in amps and the LCD can be toggled to display input/output voltage, power usage (kW), and hardware/LCD firmware versions.
The PDU15MHVIEC12AT includes a SNMP/HTTP card slot for adding an RMCARD202/RMCARD203 (sold separately).
The unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
