MPN: CAC-1584

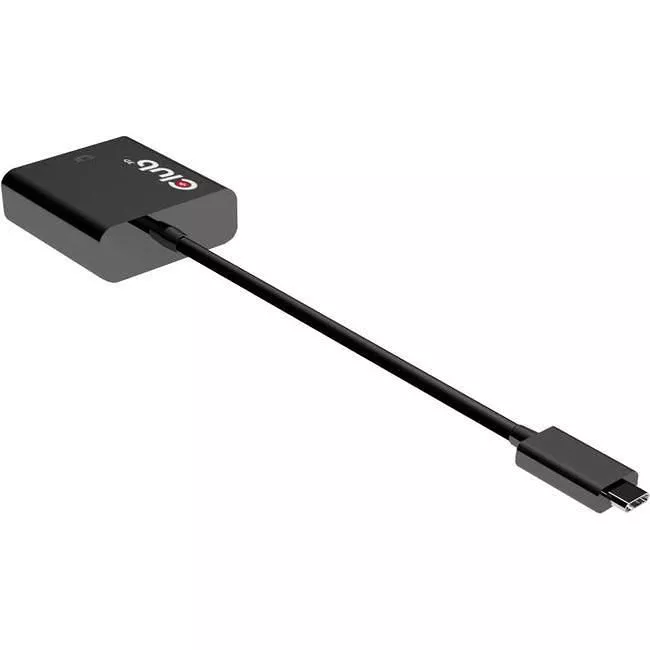

Club 3D CAC-1584 USB Type C to HDMI 2.0A HBR3 Adapter
Highlights
About
Specifications
The Club 3D CAC-1584 is a USB 3.1 Type C to HDMIâ„¢2.0 a signal converter.It features support for HDR Video quality for deep color media content play- back. The CAC-1584 requires the USB C output on the source device to have support for DisplayPortâ„¢ Alternate Mode. For HDR to function the source system needs to support DisplayPortâ„¢ 1.4 standard. The HDMIâ„¢ output is fully compliant to HDMIâ„¢ specification version 2.0a.
Supports up to 4K UHD Resolutions
The USB 3.1 Type C to HDMIâ„¢ 2.0a HDR Active Adapter supports UHD resolu- tions up to 4096 x 2160p at 60Hz.
ColorFormats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPortâ„¢ and HDMIâ„¢ link bandwidth. The CAC-1584 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addi- tion HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMIâ„¢ output with a horizontal expansion to CEA timings.
Supports up to 4K UHD Resolutions
The USB 3.1 Type C to HDMIâ„¢ 2.0a HDR Active Adapter supports UHD resolu- tions up to 4096 x 2160p at 60Hz.
ColorFormats
It supports RGB/YCbCr video color formats with a color depth of 16bpc (or 48 bits per pixel) as long as it fits within the DisplayPortâ„¢ and HDMIâ„¢ link bandwidth. The CAC-1584 also supports pixel encoding conversion from RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-trough function. In addi- tion HDR with deep color up to 12Bpc at 4K 60Hz is supported through the conversion of RGB/YCbCr 4:4:4 over DP link to YCbCr 4:2:0 on the HDMIâ„¢ output with a horizontal expansion to CEA timings.
