Highlights:
  • Rack Height: 1U
  • Processor Type: Xeon Silver
  • Standard Memory: 64 GB
  • Product Type: Server
Contact sales for pricing

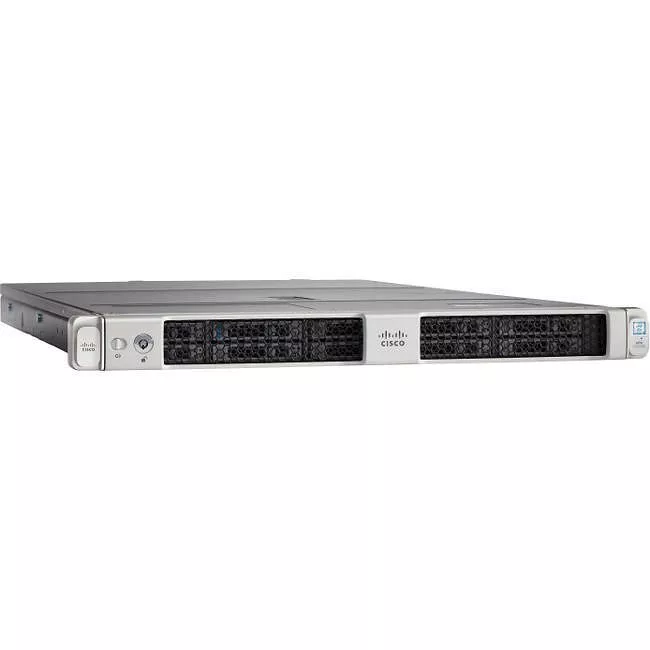

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and up to 128GB capacities, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
General Information
Manufacturer
Cisco Systems, Inc
Manufacturer Part Number
UCS-SP-C220M5-CS1
Manufacturer Website Address
http://www.cisco.com
Brand Name
Cisco
Product Series
C220 M5
Product Name
UCS C220 M5 Server
Product Type
Server
Processor & Chipset
Number of Processors Supported
2
Number of Processors Installed
2
Processor Manufacturer
Intel
Processor Type
Xeon Silver
Processor Model
4110
Processor Core
Octa-core (8 Core)
Processor Speed
2.10 GHz
Memory
Standard Memory
64 GB
Maximum Memory
3 TB
Memory Technology
DDR4 SDRAM
Number of Total Memory Slots
24
Number of Occupied Memory Slots
4
Controllers
Controller Type
12Gb/s SAS
RAID Supported
Yes
I/O Expansions
Number of Total Expansion Bays
10
Number of Internal 2.5" Bays
10
Hot Swappable Bays
Yes
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
Pilot 4
Graphics Memory Capacity
Up to 16 MB
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
Power Description
Number of Power Supplies Supported
2
Physical Characteristics
Form Factor
Rack
Rack Height
1U
Height
1.7"
Width
19"
Depth
31"
Weight (Approximate)
37.50 lb
