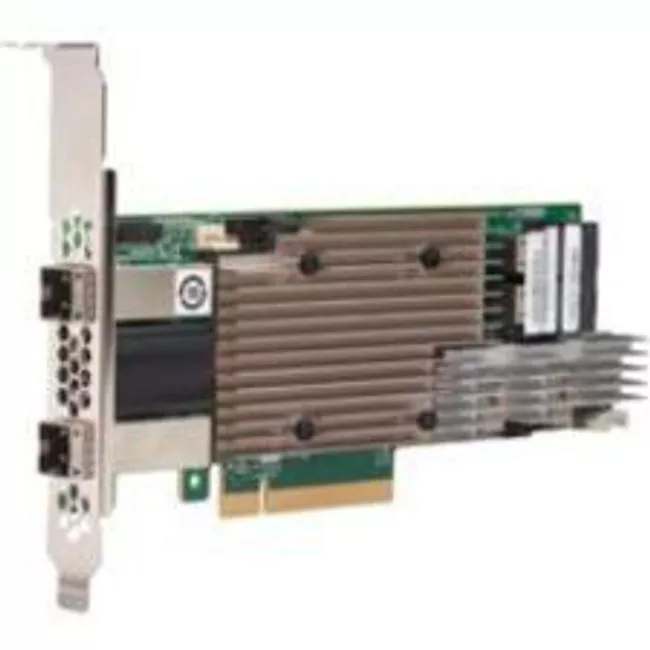

Broadcom 05-25716-00 SAS 9380-8I8E SGL - 8 Internal/External Port 12 Gb/s SAS Controller

MPN: 05-25716-00
BRC-05-25716-00-00
BRC-05-25716-00-00
Highlights
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: Linux | PC
  • RAID Levels: 0 | 1 | 5 | 6 | 10 | 50 | 60

We'll get you the best price.

BRC-05-25716-00-00
BRC-05-25716-00-00

Broadcom 05-25716-00 SAS 9380-8I8E SGL - 8 Internal/External Port 12 Gb/s SAS Controller

MPN: 05-25716-00
Highlights
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: Linux | PC
  • RAID Levels: 0 | 1 | 5 | 6 | 10 | 50 | 60

Data center, web, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9380-8i8e 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

  • Connect up to 240 SATA or SAS drives with eight internal and eight external 12Gb/s SAS ports
  • Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind CacheVault® flash cache protection
