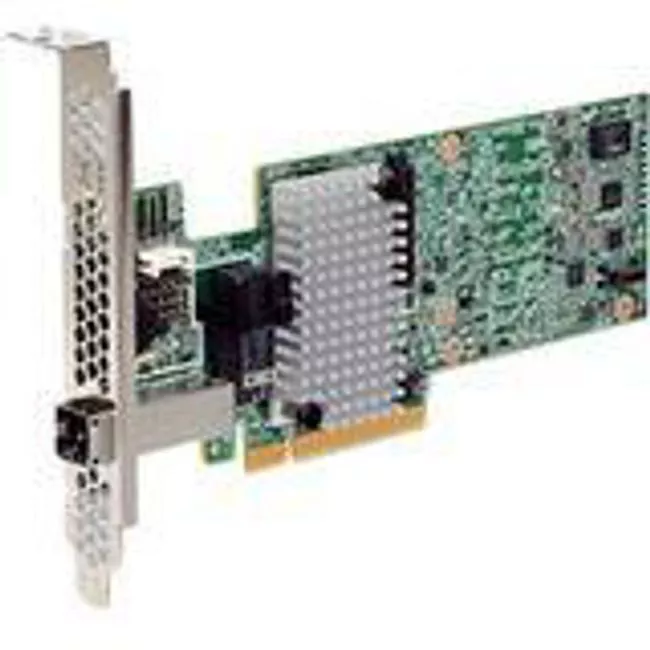

Broadcom 05-25190-02 LSI00439 / SAS 9380-4I4E SGL - 4 Internal/External Port 12 Gb/s SAS Controller

MPN: 05-25190-02
BRC-05-25190-02-00
BRC-05-25190-02-00
Highlights
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 5 | 6 | 10 | 50 | 60 | JBOD | 1

We'll get you the best price.

BRC-05-25190-02-00
BRC-05-25190-02-00

Broadcom 05-25190-02 LSI00439 / SAS 9380-4I4E SGL - 4 Internal/External Port 12 Gb/s SAS Controller

MPN: 05-25190-02
Highlights
  • Product Type: SAS Controller
  • Host Interface: PCI Express 3.0 x8
  • Platform Supported: PC | Linux
  • RAID Levels: 0 | 5 | 6 | 10 | 50 | 60 | JBOD | 1

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9380-4i4e 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.

  • Connect up to 240 SATA or SAS drives with four internal and four external 12Gb/s SAS ports
  • Provides internal storage, external JBOD expansion and RAID data protection to address a wide range of storage performance and capacity requirements.
  • Support critical, high-bandwidth applications with PCIe® 3.0 connectivity
  • Balance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60
  • Add more protection and peace of mind with optional CacheVault® flash cache protection.
