BMD-CINSTUDMFT/UHD/MR-00
MPN: CINSTUDMFT/UHD/MR

Blackmagic Design CINSTUDMFT/UHD/MR Digital Camcorder - 4K


Highlights

The world's smallest Ultra HD live studio camera!

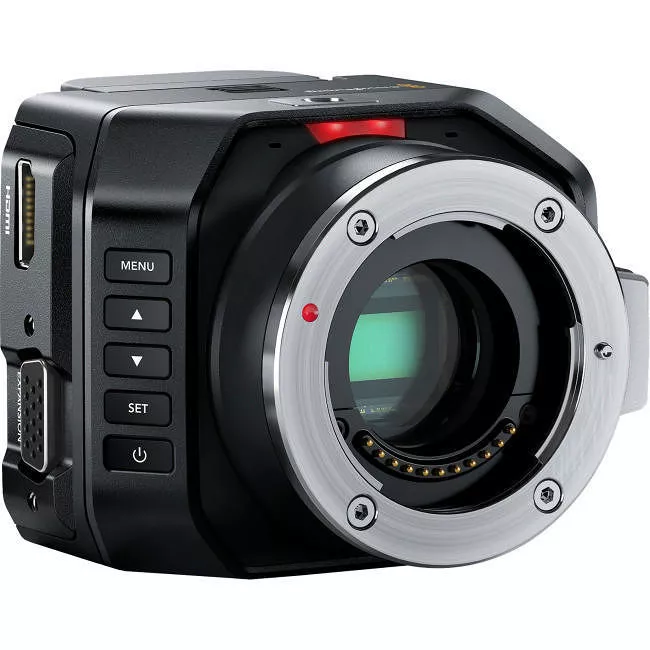

The Blackmagic Micro Studio Camera 4K is an incredibly tiny Ultra HD studio camera that's perfectly designed for live production. You get a full Ultra HD resolution camera that can be used in HD and Ultra HD video formats and it can be fully controlled from the switcher via the SDI control protocol. Micro Studio Camera 4K includes powerful features such as built in color corrector, talkback, tally indicator, PTZ control output, built in microphones, backup battery, an adaptable MFT lens mount and B4 lens control output. This means Micro Studio Camera 4K is a true studio camera that is dramatically better quality than the biggest and most expensive studio cameras used today.

Live Multi Camera Production

Broadcast quality Ultra HD that's small enough to use anywhere

The small size and completely open design of the Micro Studio Camera 4K makes it perfect for any live multi camera production! It's virtually invisible and can be hidden just about anywhere on set, giving you the ability to have more camera angles than ever before so you can create a more interesting program. You can even hide them on stage to get incredible shots of live performances or, because they're so small, safely fly them overhead during sporting events. It can also be used in the studio by rigging it with a professional broadcast lens and a Blackmagic Video Assist for monitoring.

Revolutionary Design

The world's most riggable Ultra HD studio camera

The Blackmagic Micro Studio Camera 4K is engineered with a super tough magnesium alloy core in a body that's not much larger than the lens mount itself! You can use affordable, high performance MFT lenses or add a B4 adapter to work with traditional broadcast lenses. The Micro Studio Camera's SDI program input accepts commands via the SDI connection from any ATEM switcher so you get remote control of camera settings, color balancing, black level, gamma, lens focus, iris and zoom control and much more. The expansion port includes PTZ and B4 lens control outputs so you can remote control remote heads and broadcast lenses all from a single SDI connection.

Flexible Expansion Port

Completely customizable remote control of your cameras

The Micro Studio Camera is perfect for remote use because it includes an expansion port with multiple control connections such as a PTZ serial output connection so you can use motorized heads, B4 data link output for controlling broadcast lenses and you can even build customized camera control solutions using the S.Bus input. The expansion connector uses a common DB-HD15 connector so you can easily make your own cables or use the breakout cable that's included. The expansion port also includes DC camera power in, LANC and reference input.

Ultra HD Image Sensor

True broadcast quality high resolution Ultra HD sensor

The Micro Studio Camera 4K includes an incredible quality broadcast grade Ultra HD sensor for amazing clarity and the finest textures. Ultra HD is even more important when you're working in HD because the extra sensor resolution completely eliminates any color loss from the sensor's bayer pattern so you get full bandwidth RGB HD color and superior sub pixel anti-aliasing for amazing fine image detail. The Micro Studio Camera 4K has a 6G-SDI connection so it works up to 30 frames per second in Ultra HD and can also be switched to 3G-SDI or HD-SDI so it can operate up to 1080p60. If you're working in HD or Ultra HD the Micro Studio Camera 4K can easily handle both.
