BIO-N68S3B-00
MPN: N68S3B

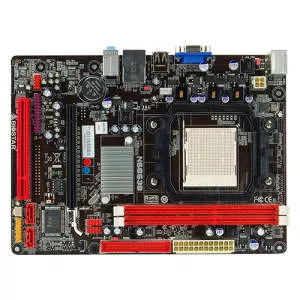

BIOSTAR N68S3B Desktop Motherboard - NVIDIA Chipset - Socket AM3 PGA-941 - 1 x Processor Support

Highlights
General Information
Manufacturer
Biostar USA
Manufacturer Part Number
N68S3B
Manufacturer Website Address
http://www.biostar-usa.com
Brand Name
Biostar
Product Model
N68S3B
Product Name
Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Chipset Model
nForce 630a
Total Processor Supported
1
Processor Technology
  • Cool'n'Quiet Technology
  • HyperTransport Technology
    • Processor Socket
    Socket AM3 PGA-941
    Processor Supported
  • Phenom II X3
  • Phenom II X4
  • Phenom II X2
  • Athlon II X3
  • Athlon II X4
  • Athlon II X2
  • Sempron
  • Athlon II
  • Phenom II
    • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    2
    Maximum Memory Supported
    8 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    GeForce 7025
    Graphics Controller Memory
    512 MB
    Audio
    Sound Controller Model
    VT1708B
    Audio Channels
    5.1
    Network & Communication
    Fast Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Number of PCI Slots
    1
    Total Number of PCI Express Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    2
    Onboard Interfaces
    Number of IDE Interfaces
    1
    Number of SATA Interfaces
    2
    Total Number of Onboard USB Ports
    4
    Number of Onboard USB 2.0 Ports
    4
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Onboard S/PDIF Header
    Yes
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.3"
    Depth
    6.7"
