Highlights:
  • Output Power: 650 W
  • Plug/Connector: On/Off Switch
  • Condition: New
  • Category: Power Devices
Contact sales for pricing

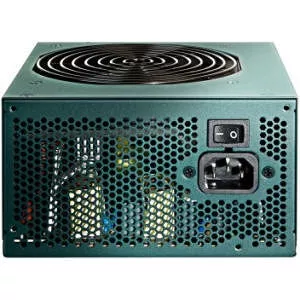

Get more power and lower your electric bill with the new EarthWatts Green series! One of the most environmentally-friendly power supplies available, the EarthWatts EA-650 Green efficiently delivers 650 Watts of reliable and stable power while meeting the Bronze level of efficiency from 80 PLUS, the most widely recognized independent standard in power supply efficiency. On top of that, this EarthWatts power supply boasts Universal Input to automatically work on any power grid on the planet, and a 120 mm double ball bearing fan to keep cool. Get the power you need, save money and help protect the environment with Antec's EA-650 Green!

General Information
Manufacturer
Antec, Inc
Manufacturer Part Number
EA650 GREEN
Manufacturer Website Address
http://www.antec.com/us/
Brand Name
Antec
Product Line
EarthWatts
Product Model
EA650 GREEN
Product Name
EarthWatts EA650 GREEN ATX12V & EPS12V Power Supply
Product Type
Power Supply
Technical Information
Specification Compliance
ATX12V/EPS12V
Efficiency
88%
Power Factor Correction (PFC)
Active
Number of Fans
1
Protection Type
  • Over Current
  • Over Voltage
  • Over Power
  • Over Temperature
  • Short Circuit
  • ATI CrossFire Supported
    Yes
    NVIDIA SLI Supported
    Yes
    Reliability
    MTBF
    100000 Hour
    Power Description
    Number of +12V Rails
    2
    Input Voltage Type
    AC
    Input Voltage
  • 110 V AC
  • 220 V AC
  • Input Voltage Range
    100 V AC to 240 V AC
    Output Voltage
  • 3.3 V DC @ 24 A
  • 5 V DC @ 24 A
  • 12 V DC @ 38 A
  • -12 V DC @ 500 mA
  • 5 V DC @ 2.50 A
  • Input Current
  • 9 A @ 110V
  • 4.50 A @ 220V
  • Output Power
    650 W
    Interfaces/Ports
    Plug/Connector
    On/Off Switch
    Receptacles
  • 1 x 20+4pin ATX Motherboard
  • 1 x 4+4pin ATX12V Motherboard
  • 2 x 6+2pin PCI-E
  • 7 x Serial ATA
  • 1 x 4-pin SP4 Floppy Drive
  • 5 x 4-pin LP4 Peripheral Device
  • Physical Characteristics
    Form Factor
    Internal
    Height
    3.4"
    Width
    5.9"
    Depth
    6.1"
    Weight (Approximate)
    4.50 lb
    Miscellaneous
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • 80 Plus Bronze
  • Country of Origin
    China
    Warranty
    Limited Warranty
    3 Year
