ABOUT

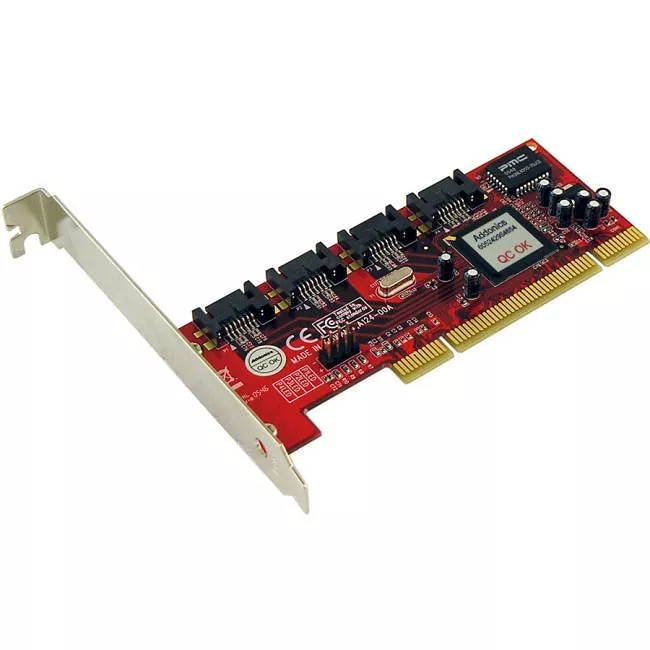

The 4 port ADSA4R5 provides high speed SATA in a PCI controller supporting RAID5 and JBOD, allowing desktop configurations with only PCI slots to have the newest RAID features. This RAID5/JBOD controller supports configurations of RAID 1, RAID 0, RAID 1+0, RAID 1 + S, RAID5 and JBOD. JBOD combines individual drives into one large volume to show as one drive letter.
See More
SPECIFICATIONS
General Information
Manufacturer
Addonics Technologies
Manufacturer Part Number
ADSA4R5
Manufacturer Website Address
http://www.addonics.com
Brand Name
Addonics
Product Name
4-Port RAID 5 / JBOD SATA II PCI Controller
Product Type
SATA Controller
Technical Information
Host Interface
PCI-X
Controller Type
Serial ATA/300
RAID Supported
Yes
RAID Levels
Number of Physical Drive Supported
4
Interfaces/Ports
Total Number of SATA Ports
4
Number of SATA Ports (Internal)
4
Physical Characteristics
Form Factor
Plug-in Card
Miscellaneous
Package Contents
- 4-Port RAID 5 / JBOD SATA II PCI Controller
- 1 x Standard Height Bracket
- 1 x Low Profile Bracket
- Software CD
- User Guide
Platform Supported
PC
