ACR-UM.CV6AA.002-00
MPN: UM.CV6AA.002

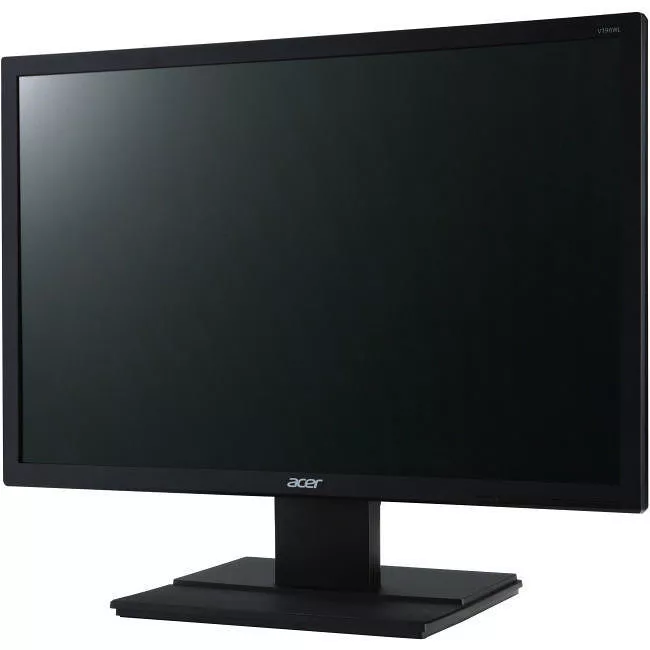

Acer UM.CV6AA.002 V196WL 19" Class WXGA+ LCD Monitor - 16:10 - Black

Highlights
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
UM.CV6AA.002
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
V
Product Model
V196WL
Product Name
V196WL Widescreen LCD Monitor
Product Type
LCD Monitor
Technical Information
Number of Screens
1
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
WXGA+
Screen Surface
Anti-glare
Panel Technology
Twisted Nematic Film (TN Film)
Response Time
5 ms
Aspect Ratio
16:10
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Adjustable Display Angle
Yes
Adjustable Display Height
No
Adjustable Display Pivot
No
Backlight Technology
LED
HDCP Supported
Yes
Video
Maximum Resolution
1440 x 900
Standard Refresh Rate
60 Hz
Color Supported
16.7 Million Colors
Contrast Ratio
100,000,000:1
Brightness
250 Nit
Interfaces/Ports
DVI
Yes
VGA
Yes
Power Description
Input Voltage
  • 110 V AC
  • 220 V AC
    • Operating Power Consumption
    13 W
    Standby Power Consumption
    450 mW
    Off-Mode Power Consumption
    350 mW
    Operating Power Consumption (Energy Star)
    13 W
    Physical Characteristics
    VESA Mount Standard
    100 x 100
    Color Family
    Black
    Color
    Black
    Height
    14.9"
    Width
    17.3"
    Depth
    7.5"
    Weight (Approximate)
    6 lb
    Weight with Stand (Approximate)
    6.90 lb
    Miscellaneous
    Package Contents
    • V196WL Widescreen LCD Monitor
    • 1 x VGA Cable
    • Power Cord
    • 1 x DVI Cable
    TCO Certified
    Yes
    Environmentally Friendly
    Yes
    Environmental Certification
    TCO Certified
    Warranty
    Limited Warranty
    3 Year

    Specifications
