About
Specifications

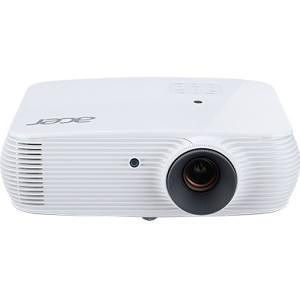

The compact, chic-white Acer H5 Series projector transforms your living room into a home theater via native 16:9 HD-ready projection, HDMI connectivity, brilliant color reproduction -- and immersive stereoscopic 3D entertainment!
About
The compact, chic-white Acer H5 Series projector transforms your living room into a home theater via native 16:9 HD-ready projection, HDMI connectivity, brilliant color reproduction -- and immersive stereoscopic 3D entertainment!
Specifications
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
MR.JNQ11.00A
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
H5
Product Model
H5382BD
Product Name
H5382BD DLP Projector
Product Type
DLP Projector
Technical Information
Projection Method
Platform Supported
Projection System
DLP
Video Compatibility
Fan Noise (Economy Mode)
28 dB
Fan Noise (Standard Mode)
31 dB
Display & Graphics
Native Resolution
1280 x 720
Maximum Resolution
1920 x 1200
Native Aspect Ratio
16:9
Graphic Mode
HD 720
Projection Lens
Lens Type
Minimum Focal Length
21.85 mm
Maximum Focal Length
24 mm
Minimum Diagonal Image Size
26"
Maximum Diagonal Image Size
25 ft
Optical Zoom
1.1x
Minimum Lens Aperture
f/2.41
Maximum Lens Aperture
f/2.53
Minimum Projection Distance
39.37"
Maximum Projection Distance
33.79 ft
Lamp
Number of Lamps
1
Lamp Type
OSRAM
Lamp Power
195 W
Normal Mode Lamp Life
5000 Hour
Economy Mode Lamp Life
6000 Hour
ExtremeEco Mode Lamp Life
10000 Hour
Low Mode Brightness
2640 lm
Standard Mode Brightness
3300 lm
Color Supported
1.07 Billion Colors (30-bit)
Compatible Aspect Ratio
4:3
Throw Ratio
1.54 to 1.72 (100"@11.15 ft)
Zoom Ratio
1:1.1
Contrast Ratio
20,000:1
Uniformity
85%
Vertical Keystone Correction
-40°/+40°
Minimum Vertical Sync
24 Hz
Maximum Vertical Sync
120 Hz
Minimum Horizontal Sync
15 kHz
Maximum Horizontal Sync
100 kHz
Digital Zoom
2x
Video
Video Signal Format
Video Signal Standard
HDTV
Audio
Number of Speakers
1
Speaker Output Power
3 W
Speaker Output Mode
Mono
Interfaces/Ports
HDMI
Yes
Number of HDMI Ports
1
Total Number of HDMI Ports
2
Number of USB Ports
1
USB
Yes
USB Connector Type
Type-A
Composite Video
Yes
Number of Composite Video Ports
1
VGA In
Yes
Number of VGA Inputs
1
Number Of Audio Inputs
1
Audio Line In
Yes
Number Of Audio Outputs
1
Audio Line Out
Yes
Power Description
Input Voltage
Operating Power Consumption
235 W
Power Supply
100 V AC ~ 240 V AC
Physical Characteristics
Product Color
White
Color Family
White
Form Factor
Ceiling Mountable
Height
3.9"
Width
12.4"
Depth
8.4"
Weight (Approximate)
5.29 lb
Operating Temperature
32°F (0°C) to 104°F (40°C)
Operating Humidity
80%
Miscellaneous
Package Contents
Optional Accessories
Standard Accessories
Warranty
Limited Warranty
1 Year
Parts Warranty/Labor
90 Day - Lamp
