ABOUT

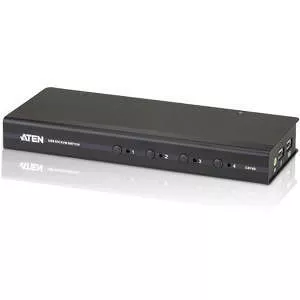

The CS74D 4-Port USB DVI KVM Switch allows you to control four computers using one USB mouse, USB keyboard and Digital Visual Interface (DVI) monitor console. It supports digital video devices, such as fl at panel displays, data projectors, plasma displays and digital TVs.
See More
SPECIFICATIONS
General Information
Manufacturer
ATEN Technology Inc
Manufacturer Part Number
CS74D
Manufacturer Website Address
http://www.aten-usa.com
Brand Name
ATEN
Product Model
CS74D
Product Name
4-Port USB DVI KVM Switch
Packaged Quantity
1
Product Type
KVM Switchbox
Technical Information
Number of Computers Supported
4
Number of Local Users Supported
1
Minimum Scan Interval
20 Second
Video
Graphic Mode
WUXGA
Maximum Video Resolution
1920 x 1200
Interfaces/Ports
USB
Yes
DVI
Yes
Headphone
Yes
Proprietary Interface
Yes
Number of USB Ports
2
Number of DVI Ports
1
Number of Proprietary Ports
2
Power Description
Input Voltage
5.3 V DC
Power Consumption
5.30 W
Physical Characteristics
Height
0.9"
Width
3"
Depth
7.8"
Weight (Approximate)
1.12 lb
Miscellaneous
Package Contents
- 4-Port USB DVI KVM Switch
- 1 x 1.2 m 44-pin Custom KVM Cable Set
- 1 x 1.8 m 44-pin Custom KVM Cable Set
- 1 x Power Adapter
- 1 x User Instruction
Platform Supported
Environmentally Friendly
Yes
Environmental Certification
