Highlights:
  • Processor Socket: Socket R LGA-2011
  • Total Processor Supported: 2
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 512 GB
Contact sales for pricing
New Levels of Performance and Interconnection for Datacenter Applications

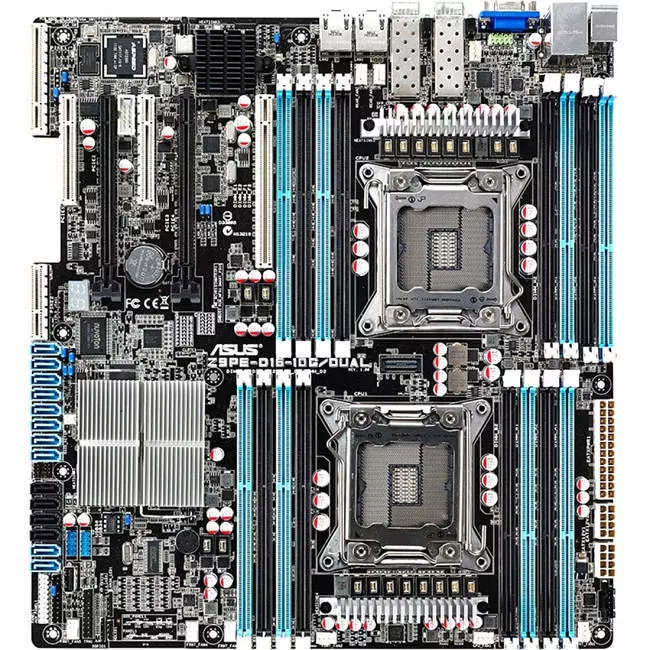

The ASUS Z9PE-D16-D16/DUAL serverboard presents ultra-extreme computing performance and is ready for future upgrades. It arises from the efforts of a dedicated team of designers and engineers to offer potent features: 95% VR power efficiency, dual Intel® LAN ports with great virtualization support, as well as dual 10G chipset onboard for high bandwidth interconnection and high I/O expandability. Users also obtain high manageability via the latest ASMB6, making this an ideal general purpose host server, AP server, mail server, and storage server.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
Z9PE-D16-10G/DUAL
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
Z9PE-D16-10G/DUAL
Product Name
Z9PE-D16-10G/DUAL Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
16
Memory Form Factor
  • DIMM
  • RDIMM
  • LRDIMM
  • UDIMM
  • Maximum Memory
    512 GB
    Memory Standard
  • DDR3-1866/PC3-15000
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1.87 GHz
  • 1.60 GHz
  • 1.33 GHz
  • 1.07 GHz
  • I/O Controller
    Controller Type
  • Serial ATA/600
  • Serial ATA/300
  • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
  • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2300
    Graphics Controller Memory
    16 MB
    Graphics Memory Technology
    VRAM
    Graphics Memory Accessibility
    Shared
    Network & Communication
    Gigabit Ethernet
    Yes
    10Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    6
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
  • Total Number of PCI Express Slots
    5
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    3
    Interfaces/Ports
    Total Number of USB Ports
    2
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    3
    PS/2 Port
    Yes
    Number of PS/2 Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Onboard Serial Header
    Yes
    Onboard LEDs Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    SSI EEB
    Width
    12"
    Depth
    13"
    Miscellaneous
    Certifications & Standards
    • CE
    • C-Tick
    • FCC(Class B)
    • BSMI
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • WEEE
