Highlights:
  • Processor Socket: Socket LGA 2011-v3
  • Total Processor Supported: 1
  • Memory Technology: DDR4 SDRAM
  • Maximum Memory: 64 GB
Contact sales for pricing

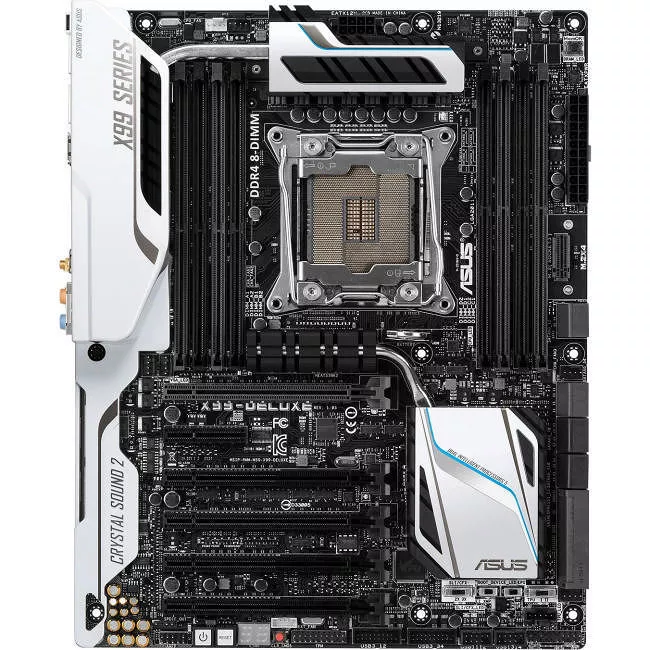

Intel® Core™ i7 Processor LGA2011-v3 Ready

This motherboard supports Intel® Core™ i7 processors in the LGA2011-v3 package, with memory and PCI Express controllers integrated to support 4-channel (8 DIMM) DDR4 memory and 40/28 PCI Express 3.0/2.0 lanes.

Intel® X99 Express Chipset

The Intel® X99 Express Chipset is a single-chipset design that supports socket LGA2011-v3 Intel® Core™ i7 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X99 provides a maximum 6 USB 3.0 ports, 10 SATA 6Gbit/s ports for faster data retrieval.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
X99-DELUXE
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Series
X99-DELUXE
Product Model
X99-DELUXE
Product Name
X99-DELUXE Rev. 1.03 Desktop Motherboard
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Technology
  • Turbo Boost Technology 2.0
  • Smart Response Technology
  • Processor Socket
    Socket LGA 2011-v3
    Processor Supported
  • Core i7
  • Xeon
  • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    8
    Memory Form Factor
    DIMM
    Maximum Memory
    64 GB
    Memory Standard
  • DDR4-3200/PC4-25600 (O.C.)
  • DDR4-3000/PC4-24000 (O.C.)
  • DDR4-2800/PC4-22400 (O.C.)
  • DDR4-2666/PC4-21300 (O.C.)
  • DDR4-2400/PC4-19200 (O.C.)
  • DDR4-2133/PC4-17000
  • Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
  • 3.20 GHz (O.C.)
  • 3 GHz (O.C.)
  • 2.80 GHz (O.C.)
  • 2.67 GHz (O.C.)
  • 2.40 GHz (O.C.)
  • 2.13 GHz
  • I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 10
  • Video
    Onboard Video
    No
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC1150
    Audio Channels
    7.1
    Network & Communication
    Bluetooth
    Yes
    Gigabit Ethernet
    Yes
    Wireless LAN
    Yes
    Wireless LAN Standard
    IEEE 802.11a/b/g/n/ac
    I/O Expansions
    Number of Total Expansion Slots
    6
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
  • Total Number of PCI Express Slots
    6
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x16 Slots
    5
    Interfaces/Ports
    Total Number of USB Ports
    10
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    10
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    S/PDIF
    Yes
    Number of S/PDIF Out Ports
    1
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    8
    Number of SATA Express Interfaces
    2
    Total Number of Onboard USB Ports
    8
    Number of Onboard USB 2.0 Ports
    4
    Number of Onboard USB 3.0 Ports
    4
    Onboard Serial Header
    Yes
    Onboard S/PDIF Header
    Yes
    Onboard Thunderbolt Header
    Yes
    Controls/Indicators
    Buttons & Keys
  • BIOS Flashback
  • TPU
  • EPU
  • MemOK
  • Power
  • Reset
  • EZ XMP
  • SLI/CFX
  • Power Description
    Power Supply Supported
  • ATX12V
  • EATX12V
  • Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • X99-DELUXE Rev. 1.03 Desktop Motherboard
    • User's Manual
    • Q-Shield
    • 8 x SATA 6Gb/s Cables
    • 1 x 2-Way/3-Way SLI Bridge
    • 1 x M.2 X4 bracket
    • 1 x 3T3R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
    • 1 x Fan Extension Card (3 x 4-pin fan out)
    • 1 x Q-connector (2 in 1)
    • 1 x 5-pin to 5-pin Cable
    • 1 x Thermistor Cable
    • Support Disc
    Certifications & Standards
    • KC
    • CE
    • BSMI
    • FCC
    • ACPI 5.0
    Environmentally Friendly
    Yes
    Environmental Certification
  • WEEE
  • RoHS
  • Country of Origin
    China
    Warranty
    Limited Warranty
    3 Year
