Highlights:
  • Processor Model: i7-7700
  • Standard Memory: 8 GB
  • Memory Technology: DDR4 SDRAM
  • Wireless LAN: Yes
Contact sales for pricing

The versatile high- performance mini PC

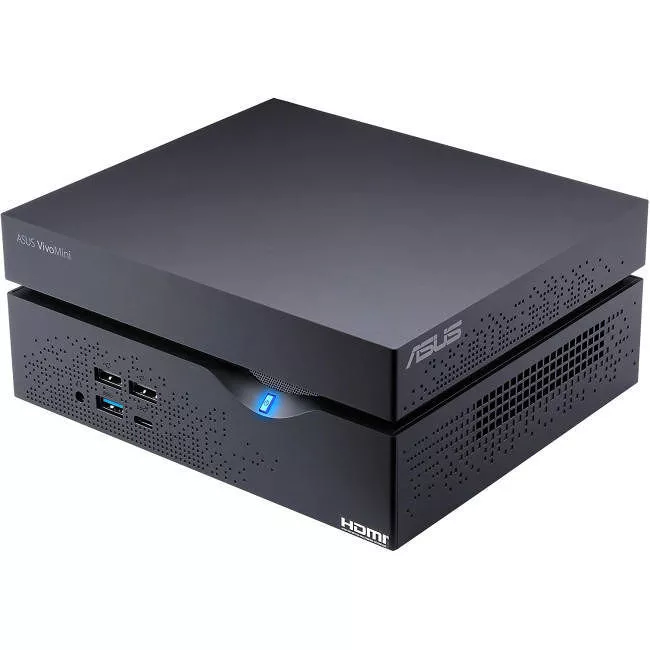

The ASUS VivoMini VC66 is a high-performance mini PC with a versatile modular design and full connectivity.
The VC66 takes processor-intensive tasks in stride, thanks to its desktop-grade 7th Generation Intel® Core™ (Kaby Lake) processor and DDR4 memory. There's 4K UHD display support, and all-around connectivity with several video output ports for compatibility with various displays.
The VC66 can be specified with one M.2 SSD and two 2.5-inch HDDs or SSDs, or with one 2.5-inch HDD/SSD and an optical disc drive. This flexibility means you can use the VC66 as a file server, a media editing platform, or simply as a mini PC for daily multitasking and entertainment.

A perfect fit for all

The VivoMini PC delivers full PC performance and flexibility, and is ideal if you're looking for a personal PC, a home entertainment center or media library.
And if you're a small business owner, you can also use the VC66 for point-of-sale terminals, digital signage, kiosk displays or workstations.

Performance

Do more with 7th Gen Intel Core processors

Powered by a desktop-grade 7th Generation Intel Core i7 processor (Up to 4.2GHz), the ASUS VivoMini VC66 delivers the performance needed for processor-intensive tasks such as media editing or 3D modeling.

Memory

Faster and better DDR4 RAM

The DDR4 2400MHz memory of the VivoMini VC66 offers 1.5x faster speeds and 20% better energy-efficiency, versus DDR3 1600MHz memory. This provides you with fast and efficient performance for daily multitask computing

Productivity

See more, do more

The VivoMini VC66 lets you browse the web, view pictures from your memory card or watch movies in stunning 4K UHD resolution - making it an ideal home theater PC.
HDMI, DisplayPort and DVI-D ports ensure compatibility with monitors, TVs and projectors - so you have a multitude of display options. The VivoMini VC66 even allows you to work on two displays at the same time.

Design

Versatile storage options for every need

The VivoMini VC66 has a versatile modular design ,two factory configuration options provide flexibility:
One configuration offers an M.2 SSD with two HDDs or SSDs. The M.2 SSD and additional SATA SSD offer faster data processing speeds, with the M.2 SSD providing speeds of up to 8Gbps. The HDD option offers large storage capacities for media libraries.
Despite its compact dimensions, the alternative configuration has room for an optional optical drive. Models with two storage modules and an optical disc drive are ideal if you're looking for a mini PC for daily multitasking and entertainment.

Upgrade-friendly design

The VC66 features a quick-access cover for easy component upgrades and maintenance. Switching out the storage drives or DDR4 memory modules is simple - all you need is a screwdriver.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
VC66-B019Z
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Line
VivoMini
Product Series
VC66
Product Model
VC66-B019Z
Product Name
VivoMini VC66-B019Z Desktop Computer
Product Type
Desktop Computer
Processor
Processor Manufacturer
Intel
Processor Type
Core i7
Processor Generation
7th Gen
Processor Model
i7-7700
Processor Speed
3.60 GHz
Memory
Standard Memory
8 GB
Memory Technology
DDR4 SDRAM
Storage
Total Hard Drive Capacity
1 TB
Optical Drive Type
DVD-Writer
Optical Media Supported
DVD-RAM/±R/±RW
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics 630
Graphics Memory Technology
DDR4 SDRAM
Graphics Memory Accessibility
Shared
Network & Communication
Wireless LAN
Yes
Bluetooth
Yes
Interfaces/Ports
HDMI
Yes
DVI
Yes
Total Number of USB Ports
6
Number of USB 2.0 Ports
2
Number of USB 3.0 Ports
1
Number of USB 3.1 Ports
2
USB Type-C
Yes
USB Type-C Detail
One of the front USB 3.0 is Type-C
Number of DisplayPort Outputs
1
DisplayPort
Yes
Software
Operating System Platform
Windows
Operating System
Windows 10
Physical Characteristics
Color
Black
Form Factor
Mini PC
Height
2.2"
Width
7.5"
Depth
7.5"
Weight (Approximate)
3.30 lb
Miscellaneous
Package Contents
  • VivoMini VC66-B019Z Desktop Computer
  • AC Adaptor
  • Power Cord
  • Warranty Card
  • User Manual
  • Quick Start Guide
  • VESA Mount Kit
Energy Star
Yes
Environmentally Friendly
Yes
Environmental Certification
RoHS
