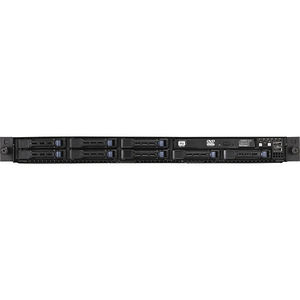

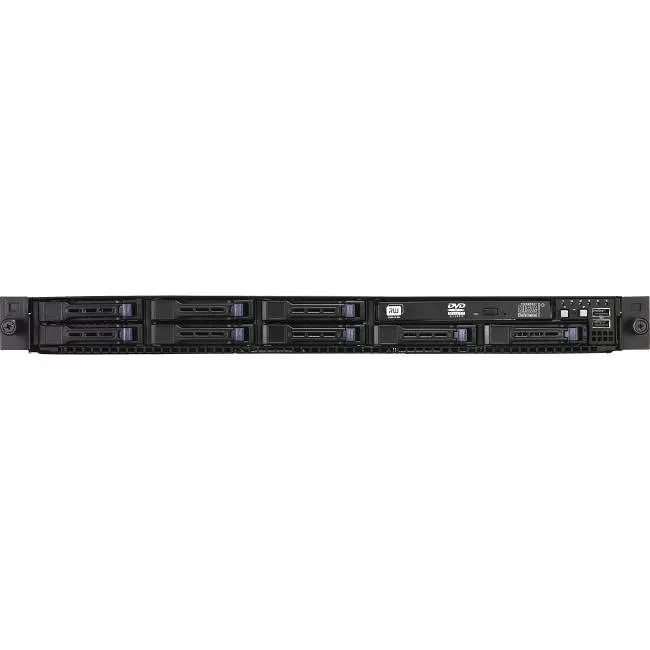

High Performance 1U Server
The ASUS RS700-E7/RS8 1U server is based on dual Intel Socket R series processors (135W), designed with 24 DIMM slots to support up to 512GB memory. It features an optimized thermal design, up to eight hard drives, 2+1 expansion, high power efficiency, and complete storage flexibility.
About
High Performance 1U Server
The ASUS RS700-E7/RS8 1U server is based on dual Intel Socket R series processors (135W), designed with 24 DIMM slots to support up to 512GB memory. It features an optimized thermal design, up to eight hard drives, 2+1 expansion, high power efficiency, and complete storage flexibility.
Specifications
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS700-E7/RS8
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS700-E7/RS8
Product Name
RS700-E7/RS8 Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect Supported
Yes
QuickPath Interconnect
8 GT/s
Chipset
Chipset Manufacturer
Intel
Chipset Model
C602
Memory
Maximum Memory Supported
512 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1600/PC3-12800
Number of Total Memory Slots
24
Storage
Optical Drive Type
DVD-Writer
Controllers
Controller Type
RAID Supported
Yes
RAID Levels
0, 1, 1+0, 5
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2300
Graphics Memory Capacity
16 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
9
Number of External 5.25" Bays
1
Number of Internal 2.5" Bays
8
Number of Total Expansion Slots
3
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 2.0 Ports
4
Network (RJ-45)
Yes
VGA
Yes
Number of SATA Interfaces
6
Operating System
Operating System Supported
Software
Software Included
Management Solution:
- ASWM Enterprise
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
800 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.5"
Depth
27.1"
Weight (Approximate)
39.68 lb
Miscellaneous
Package Contents
- RS700-E7/RS8 Barebone System
- 1 x Bag of Screws
- 2 x AC Power Cable
- 1 x RS700-E7 Support DVD
- 1 x RS700-E7 User's Guide
- 1 x ASWM ENTERPRISE DVD
- 1 x ASUS ASWM Enterprise User's Guide
- 1x ASMB6-iKVM SDVD
- 1x ASWM6-iKVM User Guide
Compatibility
VMWare ESX4.1/ESXi4.1
Certifications & Standards
Safety:
- Europe (CE, EN55022 compliance to EU Directive 89/366/EEC)
EMI:
- US (FCC, CFR47 Part 15, Class A)
- Europe (CE, EN55022 & EN55024)
- Australia (C-TICK)
- Taiwan (BSMI)
- China (CCC)
Environmentally Friendly
Yes
Environmental Certification
RoHS
Environmental Compliance
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
3 Year
