MPN: RS700-E6-ERS

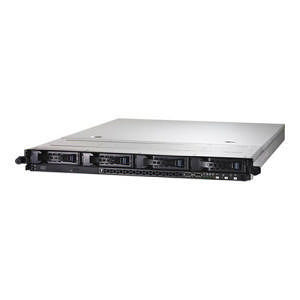

ASUS RS700-E6-ERS 1U Rackmount Barebone - Intel 5520 Chipset - Socket B LGA-1366 - 2 x CPU Support
Highlights
About
Specifications
With unique cable-less design, RS700-E6 provides neat and professional overview, delivers good signal quality, minimizes the interference of airflow for effective system cooling and benefits MIS with easier diagnosis and maintenance.
About
With unique cable-less design, RS700-E6 provides neat and professional overview, delivers good signal quality, minimizes the interference of airflow for effective system cooling and benefits MIS with easier diagnosis and maintenance.
Specifications
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS700-E6-ERS
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Name
RS700-E6/ERS4 Barebone System
Product Type
Barebone System
Processor
Number of Processors Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Memory
Maximum Memory Supported
96 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1333/PC3-10600
Number of Total Memory Slots
12
Controllers
Controller Type
Serial ATA/300
RAID Supported
Yes
Network & Communication
Ethernet Technology
Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays
5
Number of External 5.25" Bays
1
Number of 3.5" Bays
4
Number of Total Expansion Slots
3
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Network (RJ-45)
Yes
VGA
Yes
Operating System
Operating System Supported
Software
Software Included
ASWM2.0
Power Description
Number of Power Supplies Installed
2
Maximum Power Supply Wattage
1540 W
Physical Characteristics
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
27"
Depth
17.5"
Miscellaneous
Package Contents
- RS700-E6/ERS4 Barebone System
- 1 x User's Guide
- 1 x ASUS ASWM2.0 User's Guide
- 1 x Support CD
- 1 x Bag of Screws
- 1 x AC Power Cable
- 1 x Semi-Ball Bearing Rail Kit
Additional Information
QuickPath Technology:
- QuickPath Interconnect supports up to 6.4GT/s
RAID Level Detail:
- Intel Matrix Storage supports software RAID 0, 1, 10 & 5 for Windows only
- LSI MegaRAID supports software RAID 0, 1, 10) for Linux/Windows
Expansion Slot Detail:
- 1 x PIKE Slot for Storage Enhancement
- 1 x PCI Express x16 slot has the bus speed of PCI Express x8
Environmentally Friendly
Yes
Environmental Certification
80 Plus
Warranty
Limited Warranty
3 Year
