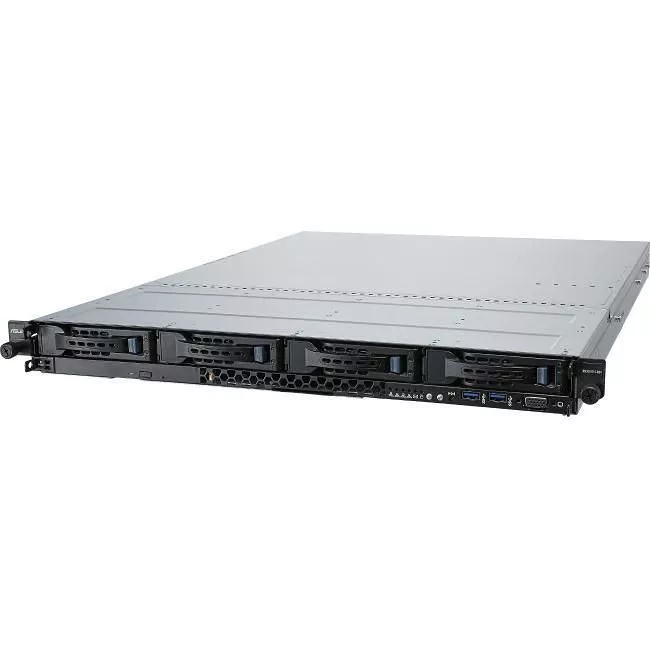

ASUS RS300-E10-RS4 Server Barebone - Intel C242 Chipset - 1X Socket LGA1151
Delivers a workload optimized solution
RS300-E10-RS4 supports the latest Intel® Xeon® E processors, which are 1.36x faster than the previous generation and operate at a maximum of 95W for leading performance. It supports four memory slots that fit up to 64GB of DDR4 2666 for memory-intensive computing.
Flexible expansion for better storage
RS300-E10-RS4 offers the performance required by demanding visual computing workloads with support of one NVIDIA graphics card, or you can choose two PCIe Gen3 slots to expand I/O capacity. A built-in PCI slot is designed for the usage availability of legacy PCI devices.
RS300-E10-RS4 fits four hot-swappable 2.5-inch SSDs or 3.5-inch HDDs and two 2.5-inch internal SSD bays are included for larger storage. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.
High-speed mini-SAS HD connections
RS300-E10-RS4 comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. RS300-E10-RS4 also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS300-E10-RS4, making it a great upgrade option.
Redundant Gold PSU support
RS300-E10-RS4 supports redundant 450W 80 Plus Gold power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation.
Maximize I/O performance and data protection
RS300-E10-RS4 supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 6Gb/s SATA and 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of RS300-E10-RS4, making it a great upgrade option.
Quad Intel® Gigabit Ethernet
RS300-E10-RS4 features quad server-class Intel® Ethernet ports and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network. Optional ASUS PEB series Ethernet cards are available for networking upgrade.
Comprehensive IT infrastructure management
RS300-E10-RS4 features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.
The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers.
ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
