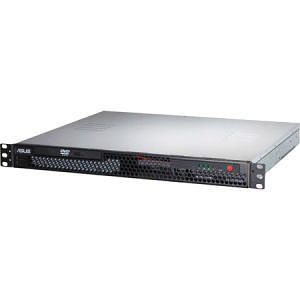

ASUS RS100-E7-PI2 1U Rackmount Barebone - Intel C204 Chipset Socket H2 LGA-1155 1x CPU

MPN # RS100-E7-PI2
Highlights:
  • Number of Processors Supported: 1
  • Processor Socket: Socket H2 LGA-1155
  • Maximum Memory: 32 GB
  • Rack Height: 1U
Contact sales for pricing

As a slim single-socket rack-mount server, RS100-E7/PI2 is based on the latest generation Sandy Bridge CPU and Intel C204 chipset, providing high performance and cost-effective data protection with ultra silence in compact chassis of 15 depth, while the 80 plus power supply offers improved system power efficiency.

General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
RS100-E7-PI2
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
RS100-E7/PI2
Product Name
RS100-E7/PI2 Barebone System
Product Type
Barebone System
Processor & Chipset
Number of Processors Supported
1
Processor Socket
Socket H2 LGA-1155
Processor Supported
  • Xeon
  • Core i3
    • Processor Technology
  • Hyper-Threading Technology
  • Virtualization Technology
    • Direct Media Interface Supported
    Yes
    Direct Media Interface
    5 GT/s
    64-bit Processing
    Yes
    Chipset Manufacturer
    Intel
    Chipset Model
    C204
    Memory
    Maximum Memory
    32 GB
    Memory Technology
    DDR3 SDRAM
    Number of Total Memory Slots
    4
    Controllers
    Controller Type
    Serial ATA/600
    RAID Supported
    Yes
    RAID Levels
    0, 1
    Display & Graphics
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Graphics Memory Capacity
    16 MB
    Network & Communication
    Ethernet Technology
    Gigabit Ethernet
    I/O Expansions
    Number of External 5.25" Bays
    1
    Number of 3.5" Bays
    2
    Number of Total Expansion Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Network (RJ-45)
    Yes
    VGA
    Yes
    Number of SATA Interfaces
    2
    Software
    Operating System Supported
  • Windows Server 2008 Enterprise Edition
  • Windows Server 2008 Enterprise x64 Edition
  • Windows Server 2003 R2 Enterprise
  • Windows Server 2003 R2 Enterprise x64
  • Windows Server 2008 R2 Standard
  • SuSE Linux Enterprise Server 10
  • SuSE Linux Enterprise Server 10 x64
  • SuSE Linux Enterprise Server 11
  • SuSE Linux Enterprise Server 11 x64
  • Red Hat Enterprise Linux AS5.5
  • Red Hat Enterprise Linux AS5.5 x64
    • Power Description
    Number of Power Supplies Installed
    1
    Maximum Power Supply Wattage
    220 W
    Physical Characteristics
    Form Factor
    Rack-mountable
    Rack Height
    1U
    Height
    1.7"
    Width
    16.9"
    Depth
    15"
    Weight (Approximate)
    14.33 lb
    Miscellaneous
    Certifications & Standards

    Safety:

    • US/Canada: (UL1950-CSA950)
    • Europe: (CE, EN55022 compliance to EU Directive 89/366/EEC)

    EMI:

    • US (FCC, CFR47 Part 15, Class B)
    • Europe (CE, EN55022 & EN55024)
    • Australia (C-TICK)
    • Taiwan (BSMI)
    • China (CCC)
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS
  • 80 Plus
    • Warranty
    Limited Warranty
    3 Year
