ASU-PRIMEZ370-AII-00
MPN: PRIMEZ370-AII

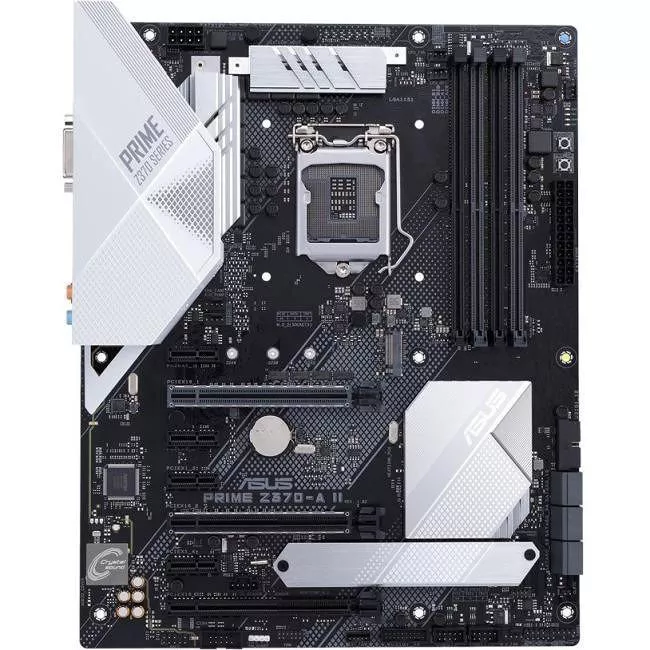

ASUS PRIMEZ370-AII Prime Z370-A II Desktop Motherboard - Intel Z370 Chipset - Socket H4 LGA-1151 - Intel Optane Memory Ready - ATX

Highlights

Intel LGA 1151 ATX motherboard with M.2 Heatsink, DDR4 4000MHz, Dual M.2, Intel Optane memory ready, SATA 6Gb/s, USB 3.1 Gen 2 Type-C

  • Ready for the latest Intel® Coreâ„¢ processors
  • Enhanced power solution: Premium components provide better power efficiency
  • 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
  • Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
  • Next-gen connectivity: Supreme flexibility with Intel Optane memory ready, Thunderbolt 3 and dual M.2 support
  • M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperatures by up to 20°C for unthrottled transfer speeds and enhanced reliability
  • ASUS Aura Sync: Controllable onboard RGB lighting that can be easily synced with an ever-growing portfolio of Aura-capable hardware

PRIME

ASUS Prime Z370 Series motherboards provide the solid foundation needed for your first build, plus loads of scope to grow with your ambitions. We've melded all the good stuff that's packed into the latest Intel processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, immersive onboard audio, and support for the ASUS Fan Extension Card. Build smart and easy with ASUS Prime Z370.

Power delivery enhancements

DR. MOS

The Prime Z370-A II's CPU VRM utilizes Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that Intel's latest processors demand.

ProCool power connector

Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.

Tune it your way

5-Way Optimization

One-click overclock and cooling, done!

ASUS 5-Way Optimization makes your PC smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.

  • An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
  • Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
  • Stress test function helps optimize and overclock for CPU- or memory-centric workloads.

Make your memory go faster

ASUS OptiMem preserves memory signal integrity by routing memory traces and vias to the optimal PCB layer, and our T-Topology layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements lead to more headroom for overclocking and improved stability, allowing memory speeds of DDR4-4000 and beyond with all slots populated.

OC Design - ASUS Pro Clock Technology

PRIME Z370-A II includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel Core 8th Generation processors.
