Highlights:
  • Processor Socket: Socket H3 LGA-1150
  • Total Processor Supported: 1
  • Memory Technology: DDR3 SDRAM
  • Maximum Memory: 32 GB
Contact sales for pricing
Best choice for scale-out storage in data centers

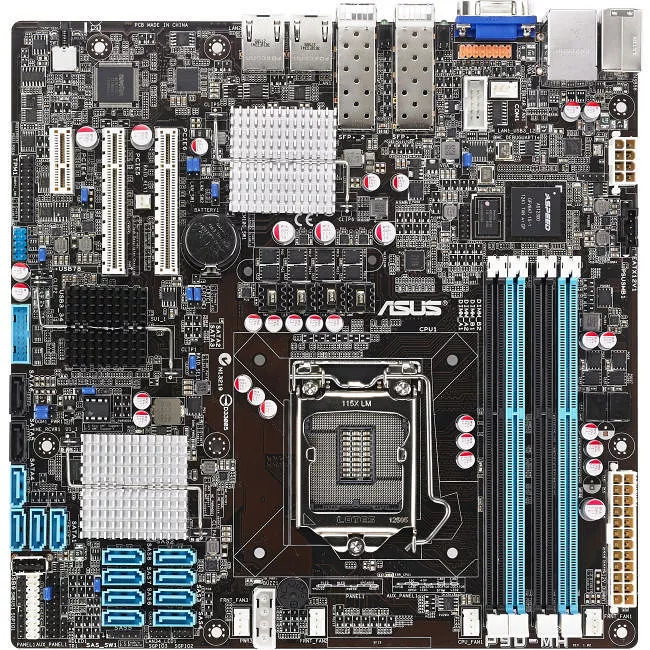

  • The ASUS P9D-MH/SAS/10G-DUAL is a micro ATX form factor serverboard featuring the latest Intel® Xeon® E3-1200 v3 processor family, Broadcom® 10Gb/s Ethernet, dual server-class Intel® Ethernet I210 LAN, LSI SAS 2308 controller, SATA 6Gb/s storage, and ASUS digital power delivery.
  • The P9D-MH/SAS/10G-DUAL is tailor-made for Apache™ Hadoop® storage servers to handle big data using large-scale commodity hardware and can also be applied to other high-end storage server applications.
General Information
Manufacturer
ASUS Computer International
Manufacturer Part Number
P9D-MH/SAS/10G-DUAL
Manufacturer Website Address
http://usa.asus.com
Brand Name
Asus
Product Model
P9D-MH/SAS/10G-DUAL
Product Name
P9D-MH/SAS/10G-DUAL Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
1
Processor Socket
Socket H3 LGA-1150
Processor Supported
  • Core i3
  • Pentium
  • Celeron
  • Xeon
  • 64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    4
    Memory Form Factor
    UDIMM
    Maximum Memory
    32 GB
    Memory Standard
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1.60 GHz
  • 1.33 GHz
  • I/O Controller
    Controller Type
  • Serial ATA/600
  • Serial ATA/300
  • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
  • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2300
    Graphics Controller Memory
    32 MB
    Graphics Memory Technology
    DDR3 SDRAM
    Graphics Memory Accessibility
    Shared
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    3
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
  • Total Number of PCI Express Slots
    3
    Number of PCI Express x1 Slots
    1
    Number of PCI Express x8 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    2
    Number of USB 3.0 Ports
    2
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    2
    Number of Onboard USB 3.0 Ports
    2
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    Micro ATX
    Width
    9.6"
    Depth
    9.6"
    Miscellaneous
    Certifications & Standards
    • CE
    • FCC(Class B)
    • C-TICK
    • BSMI
    Environmentally Friendly
    Yes
    Environmental Certification
    RoHS
    Country of Origin
    China
