- Cost-effective driven
- uATX combact size
- Daul Intel I210 Server Class GbE delivering high networking bandwidth
- Complete remote management saving time and efforts
Micro ATX compact with Multiple Expansions

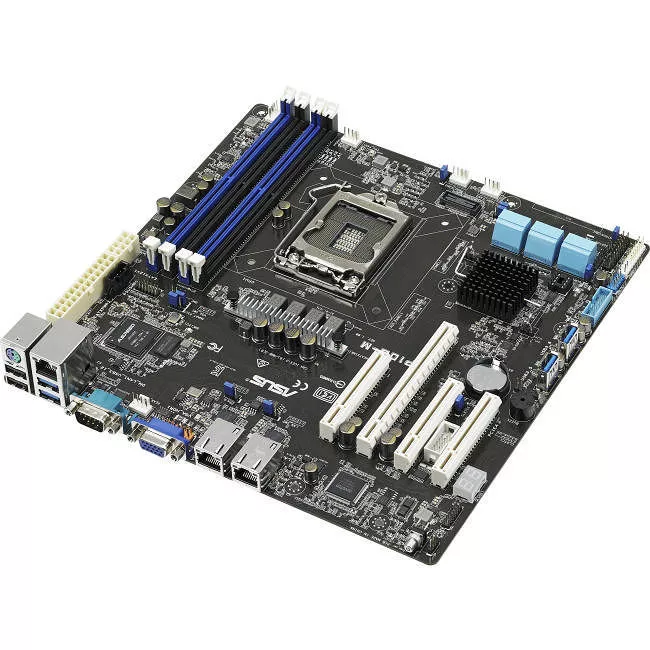

The ASUS P10S-M is an Intel® Greenlow platform server board based on the Intel® C232 chipset provides dual server-class Intel® Ethernet , native 6 SATA 6G, and 4 PCI Express 3.0 which can fulfill various requirements. The 9.6" x 9.6" micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
Next-Gen Storage - NVMe Support
Next-Gen Storage technology - NVMe is where the industry is headed. By taking new NVM technology closer to the CPU with the benefits of less latency and higher maximum bandwidth, NVMe solution is the fastest internal storage interface today.
To implement NVMe application on P10S-M, users can directly plug the PCIeNVMe devices or through ASUS-made PCIe to U.2 adapter (ASUS PCIE-NVME1). By using mini-SAS HD to min-SAS HD cable or mini-SAS HD to SFF-8639 cable, the ASUS-made PCIe to U.2 adapter offer flexible NVMe upgrade package on different usage scenario.
Optional PIKE II 3x08 Series SAS 12Gb/s solution
ASUS PIKE II 3x08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users' needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.
ASUS Platinum-Grade Power Efficiency
ASUS P10S-M server board is designed with the platinum power solution with the hand-chosen components and provide titanium efficiency which is up to 92%. The platinum power solution consists 3 pillars to achieve the 92% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3?-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.
Serviceability - Quick Boot
The ASUS P10 Series features quick initialization guidance which let users realize system initialization state in seconds; Turn on the power button comes with 3 key information showing on the screen at the same time: (1) progress bar showcases the booting status, (2) BMC IP address if ASMB module is mounted on the server and (3) 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.
